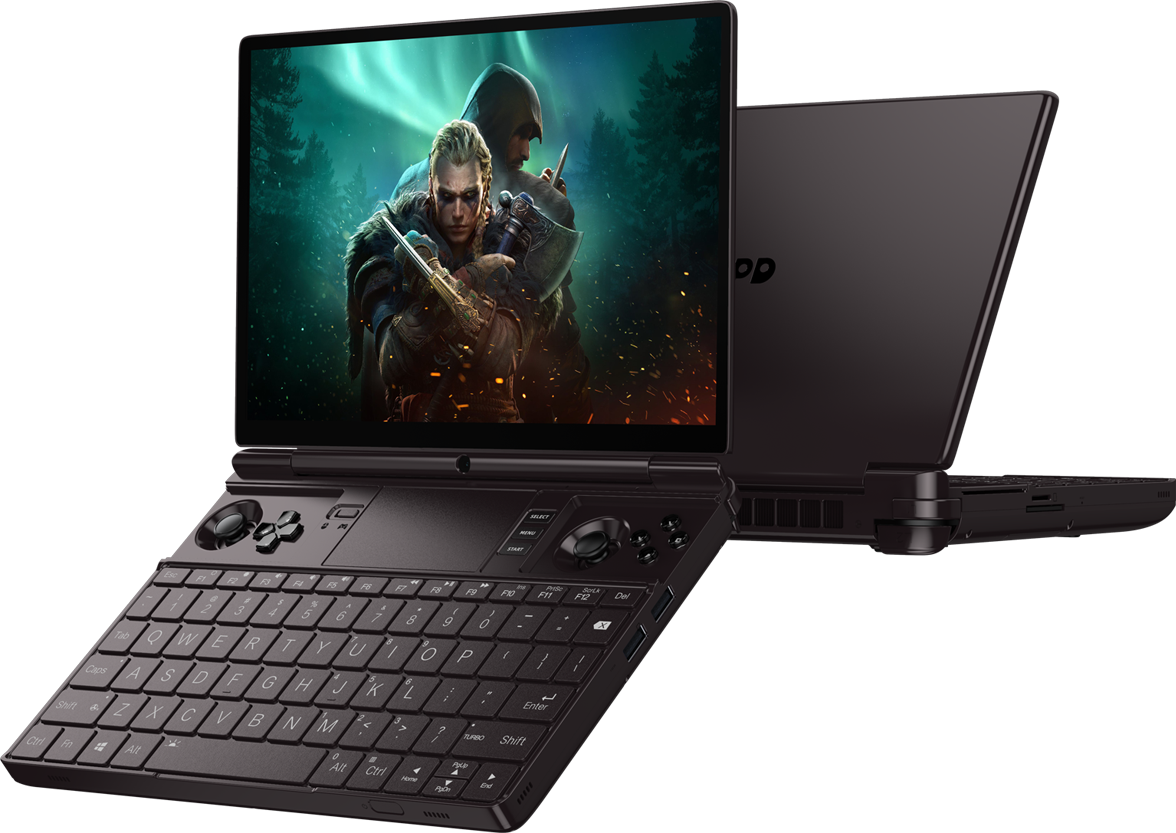

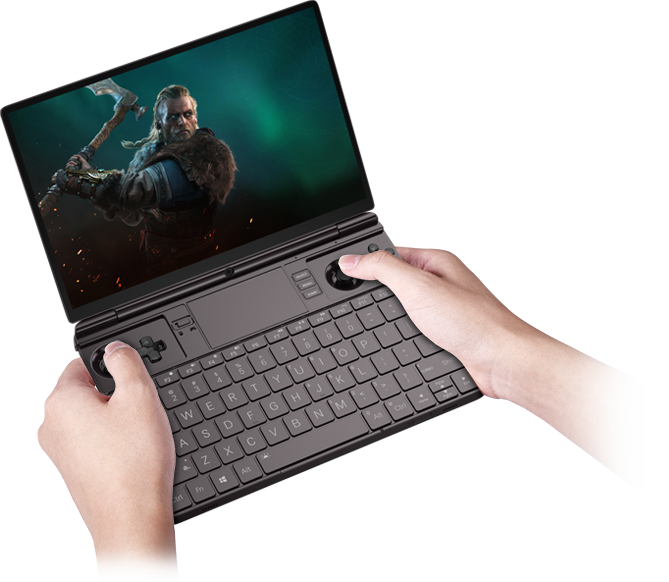

GPD WIN Max 2 2023

GPD WIN Max 2 2023

Handheld Gaming PC with Bezel-less Display

AMD Ryzen 7 7840U

AMD Ryzen 7000 Processor

AMD Radeon 780M Graphics

12CU, 768 shaders

64GB / 32GB RAM

LPDDR5x-7500 MT/s

2TB / 1TB M.2 SSD

PCIe 4.0 Support

Support "GPD G1" eGPU

Exclusive Oculink (SFF-8612)  Port

AMD Ryzen 5 7640U

AMD Ryzen 7000 Processor

AMD Radeon 760M Graphics

8CU, 512 shaders

16GB RAM

LPDDR5x-7500 MT/s

10.1 inchs

Bezel-less Display With Passive Eye Protection

Highly Efficient Cooling Solution

Large Turbo Fan + Double Heat Pipe

Hall Sensor Analog Sticks Preventing Stick Drift Phenomenon

Great Linearity, Step-less Design With No Dead Zone

Optional 4G LTE Module

Play Anytime, Anywhere

Dual M.2 Slots

M.2 2280/2230

67Wh Large Battery

100W PD Fast Charge

4 Speakers

Surround Sound

Wi-Fi 6

2402Mbps

Bluetooth 5.2

Transfer Faster

Full-speed USB4

eGPU Support

SD, microSD Card Slot

Great Value For Photographers/Players

"QWERTY" Keyboard

Backlit Keyboard With 2 Level Brightness Control

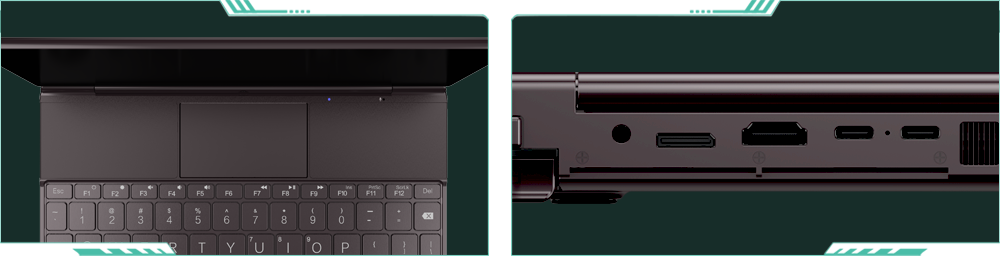

A Sensible Choice Of Built-in Ports For Easy Expansion

Full-speed USB4 interface, with 40Gbps high-speed connectivity and support for PD 100W charging. Unique Oculink (SFF-8612) port, PCIe direct connection, 63Gbps effective bandwidth, supports GPD G1 eGPU, providing a complete gaming and office experience to meet your needs in all scenarios.

 USB4

100W PD fast charge

HDMI 2.1

Oculink（SFF-8612）Female Port

3.5mm Headset & Microphones

USB 3.2 Gen2

100W PD fast charge

microSD Slot

SD Slot

Reset

Loudspeakers

Loudspeakers

Loudspeakers

Loudspeakers

Power button with a fingerprint sensor

USB 3.2 Gen1

USB 3.2 Gen1

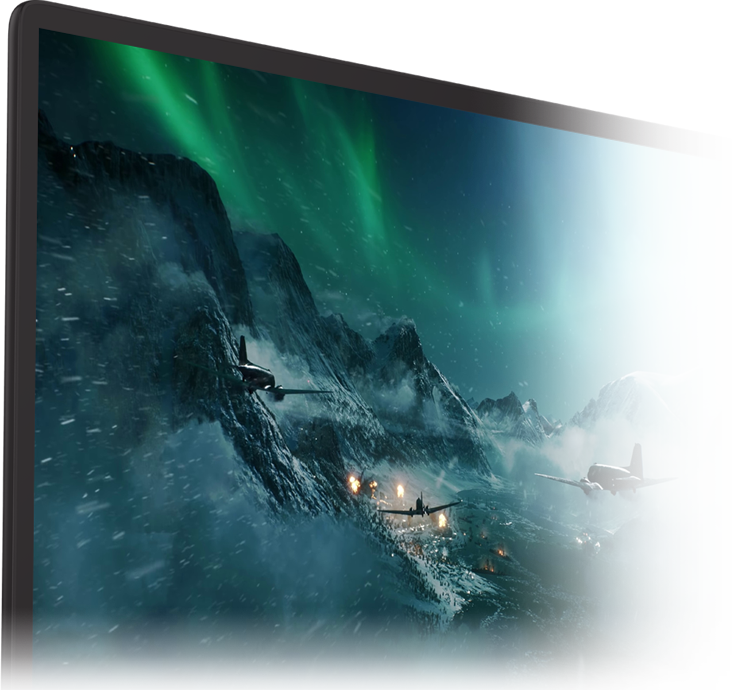

10.1-inch Display With Ultra-narrow Bezel, Eye Protection And Native Landscape Mode

Great news for anyone who loves handheld gaming on a big screen! WIN Max 2 2023 is featuring an ultra-narrow bezel 10.1-inch IPS screen with eye protection, 90% screen-to-body ratio, and fifth-generation Corning Gorilla Glass. Its native landscape mode set you free from all worries regarding aspect ratio compatibility issues with older games. It has a default resolution of 1920×1200, a maximum resolution of 2560×1600, 299PPI, and a relevant aspect ratio of 16:10.

1920×1200

Default resolution

2560×1600

Highest resolution

299 ppi

Super clear display

400 nit

Brightness

80.2%

DCI-P3 wide color gamut

90%

Screen ratio

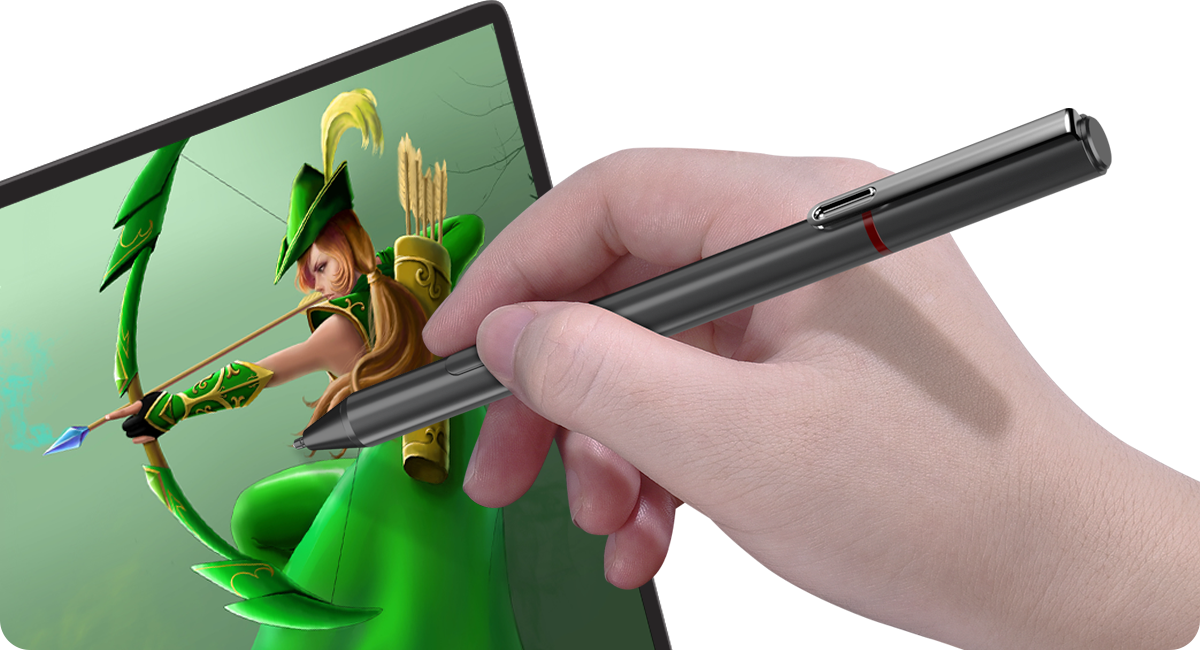

Supports 10-point Touch, Active Pens With Up To 4096-level pressure-sensitivity, Unique Metal Mesh Technology

It is supporting 10-point touch, and active pens with up to 4096-level pressure-sensitivity (MPP2.0, including Surface Pen). The first of our device to introduce Metal Mesh technology, which helps in improving display clarity, preventing drifting and ghosting when using active pens.

All-metal Apple-style Unibody Design Made Of 6061 Aluminum-magnesium Alloy With A Touch Of Aviation Grade ABS

All-metal Apple-style iron black unibody design made of 6061 aluminum-magnesium alloy with 36 precision CNC processes. The bottom shell is made of aviation-grade ABS synthetic resin to keep a cool and comfortable two-hand grip experience!

AMD Ryzen 7 7840U

The Ultimate High-Preformance Processor for Handheld Gaming PC

8 Cores / 16 Threads

"ZEN 4" Processor

12 "RDNA 3"

Graphics Cores

24.5MB

Total Cache

8.9 TFLOPS

Graphics Preformance

AMD Ryzen 5 7640U

The High-Preformance Processor for Handheld Gaming PC

6 Cores / 12 Threads

"ZEN 4" Processor

8 "RDNA 3"

Graphics Cores

22.38MB

Total Cache

5.8 TFLOPS

Graphics Preformance

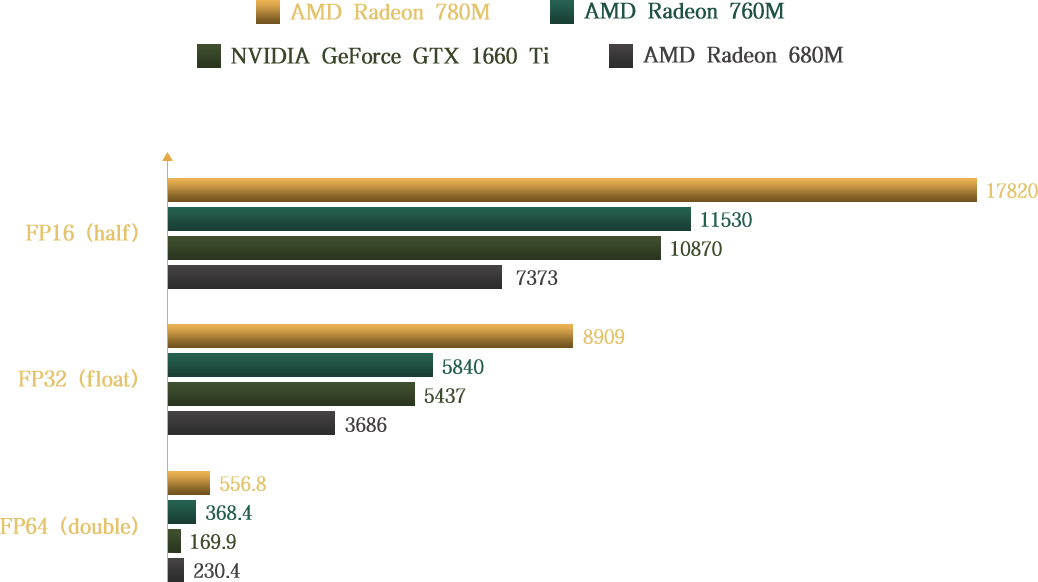

Floating-Point Performance Comparison, RDNA3 Architecture Integrated Graphics Surpasses NVIDIA GeForce GTX 1660 Ti

With the brand-new RDNA3 architecture integrated graphics, floating-point performance has improved by 150% compared to the previous generation RDNA2! Combined with four-channel LPDDR5x-7500 MT/s memory, the memory bandwidth has been simultaneously increased. Compared to NVIDIA GeForce GTX 1660 Ti, performance has increased by approximately 70%, and pixel and texture fill rates have also doubled.

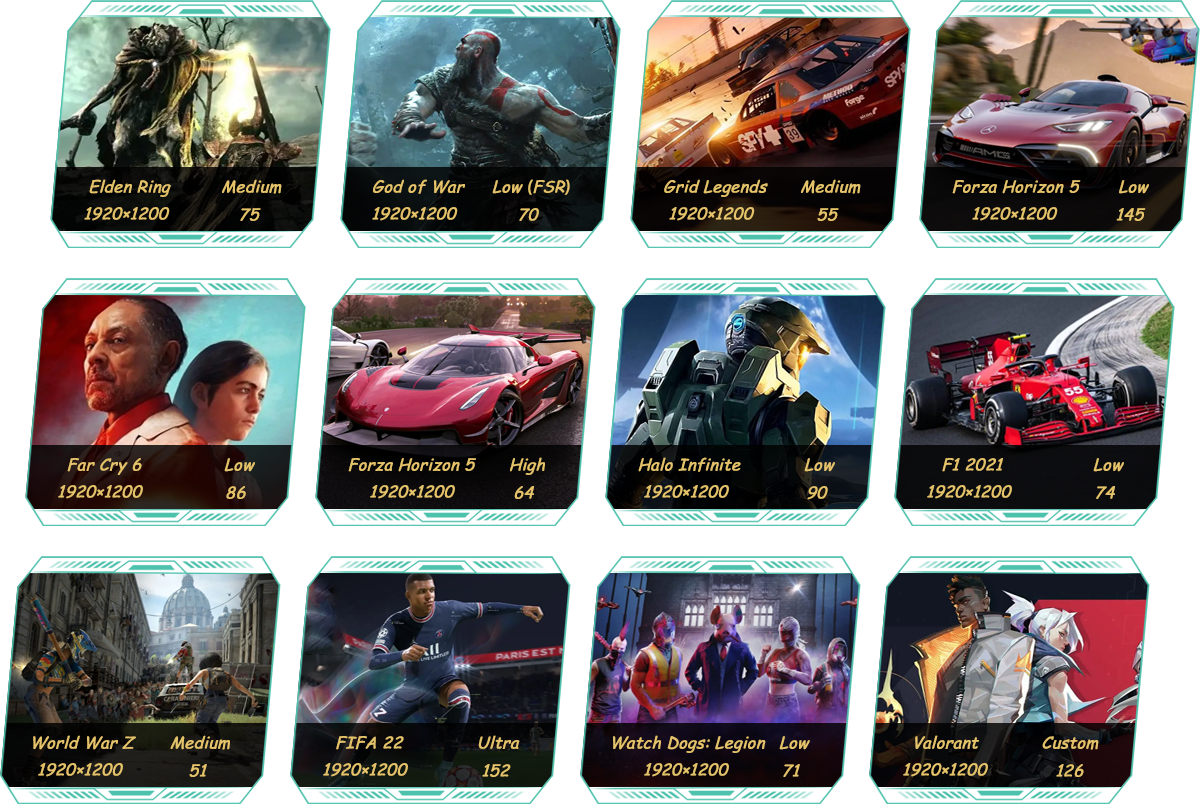

RDNA3 Architecture Integrated Graphics Combined With FSR 3.0 Technology Doubles Gaming Performance, Running The Latest AAA Games At 60 FPS Per Second And A Resolution Of 1200P

The RDNA3 architecture integrated graphics AMD Radeon 780M has a power efficiency improvement of about 50%. Compared to FSR 2.0, FSR 3.0 has nearly doubled gaming performance, with the latest AAA games running at over 60 fps per second at a resolution of 1920×1200

Test benchmark: AMD Ryzen 7 7840U / 16GB LPDDR5x-7500 MT/s / 1TB M.2 NVMe SSD / 1920×1200 / Windows 11 Home 64bit
Unless specified otherwise, FSR is disabled by default during testing!

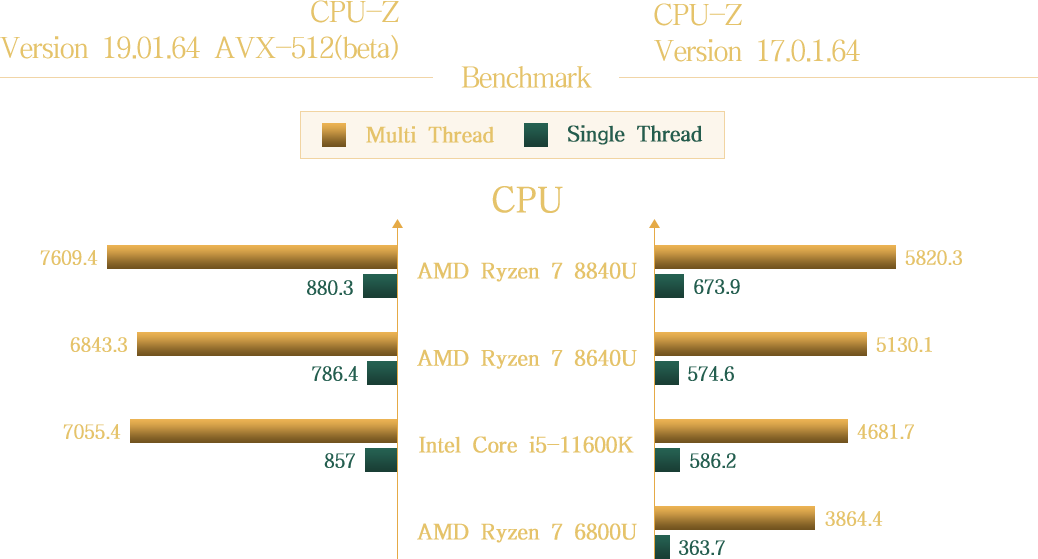

For The First Time, AMD ZEN 4 Adds The AVX-512 Instruction Set, Improving Performance By 30% In CPU-Z Benchmark Tests

The Ryzen 7000 series APU, based on the all-new AMD ZEN 4 architecture, supports the AVX-512 instruction set for the first time, mainly aimed at accelerating AI and HPC applications. The FP32 floating-point inference multi-threaded performance is improved by 1.3 times, and the INT8 integer inference multi-threaded performance is improved by 2.5 times

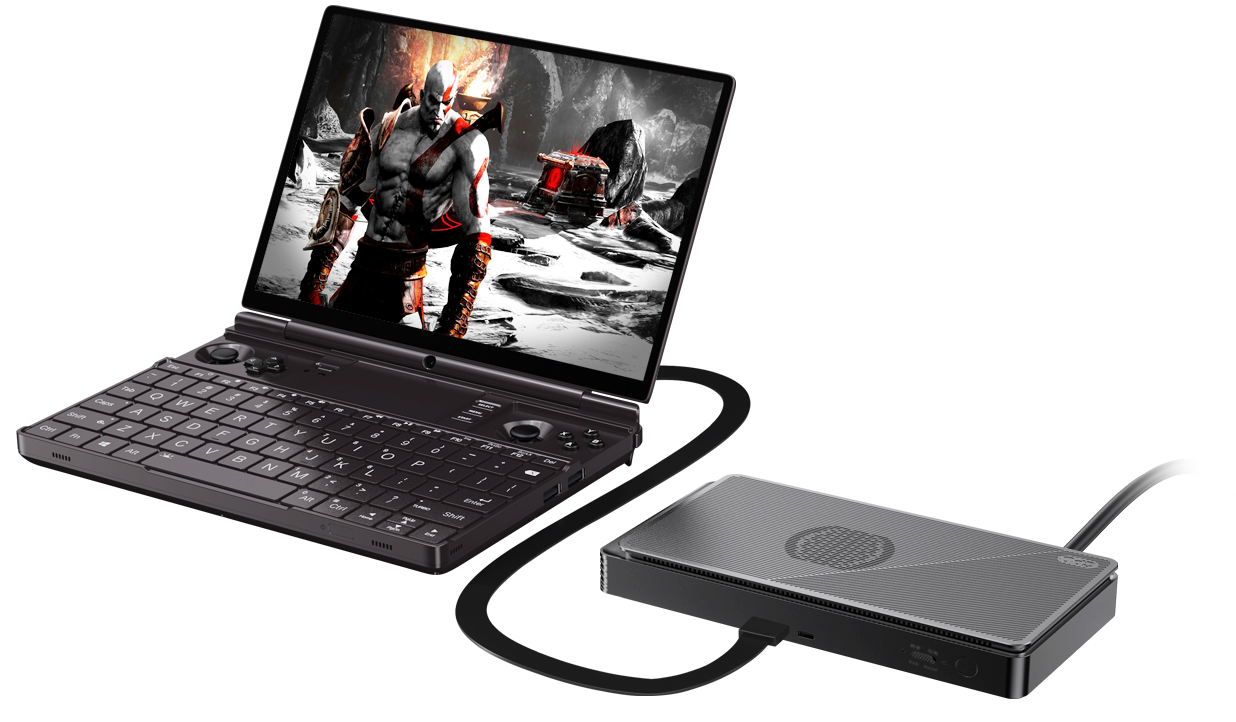

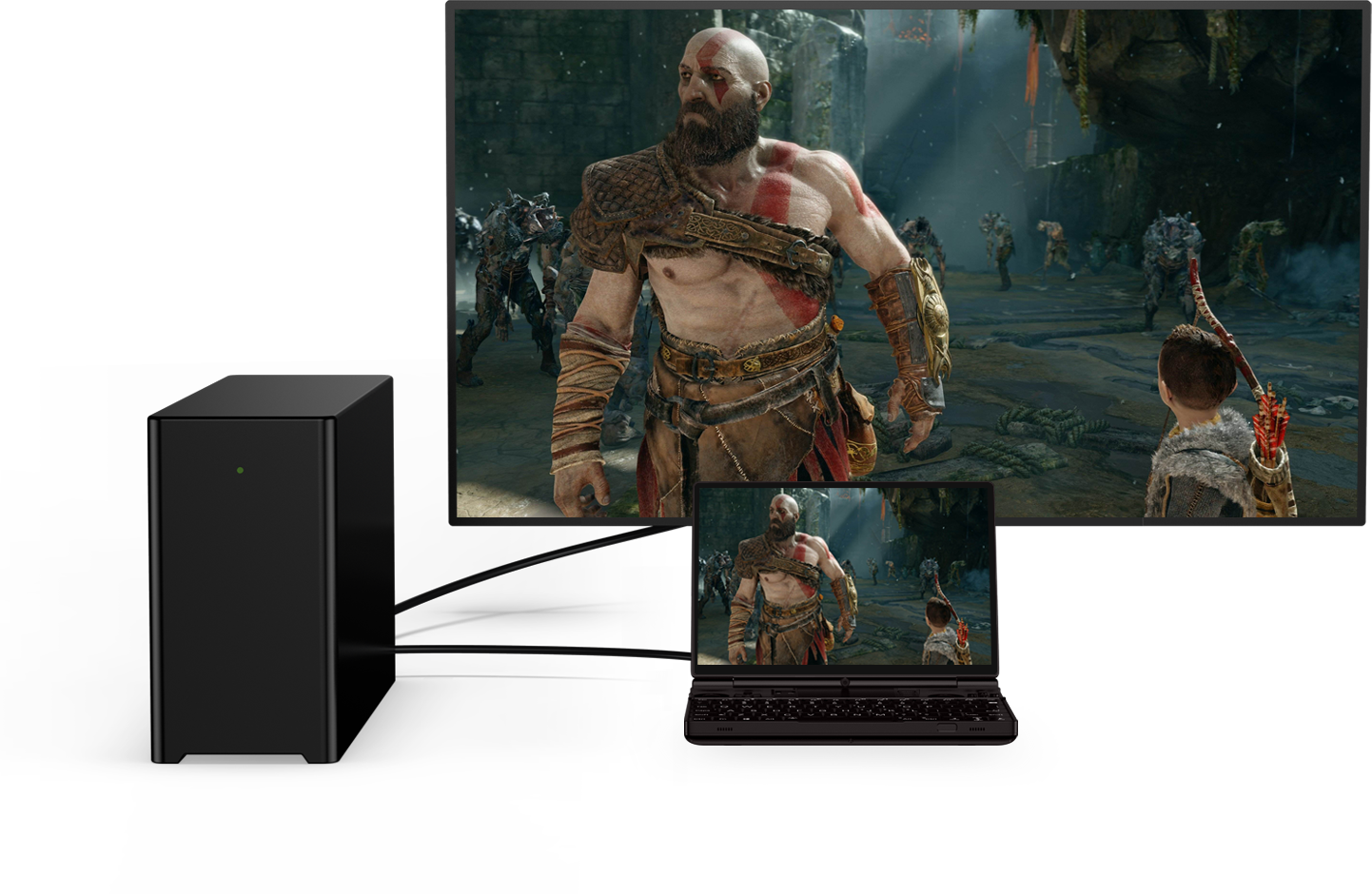

Equipped With The Exclusive Oculink (SFF-8612) Female Port And Supporting The "GPD G1" eGPU, The Performance Exceeds That Of The RTX 3070

RX 7600M XT

RDNA3 Architecture

8GB GDDR6

VRAM Size

32MB

Infinity Cache

Oculink Port

Effective bandwidth of 63Gbps

SD Memory Card

Peak read speed of 312MB/s

75~120W

TGP

USB 3.2 × 3

5Gbps

HDMI × 1, DP × 2

Supports three displays

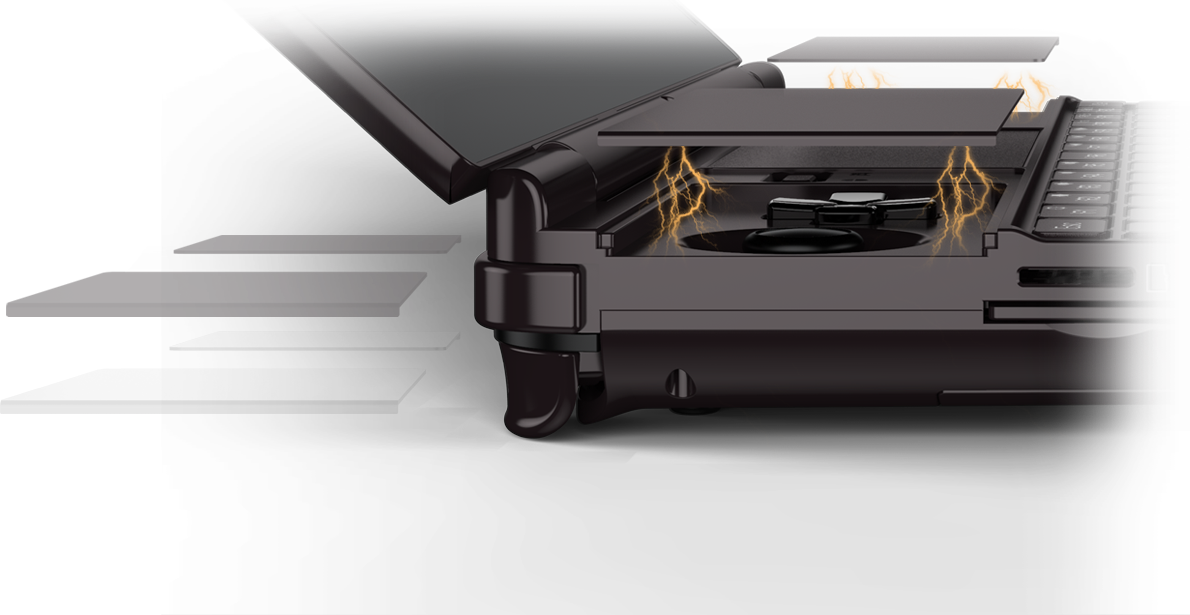

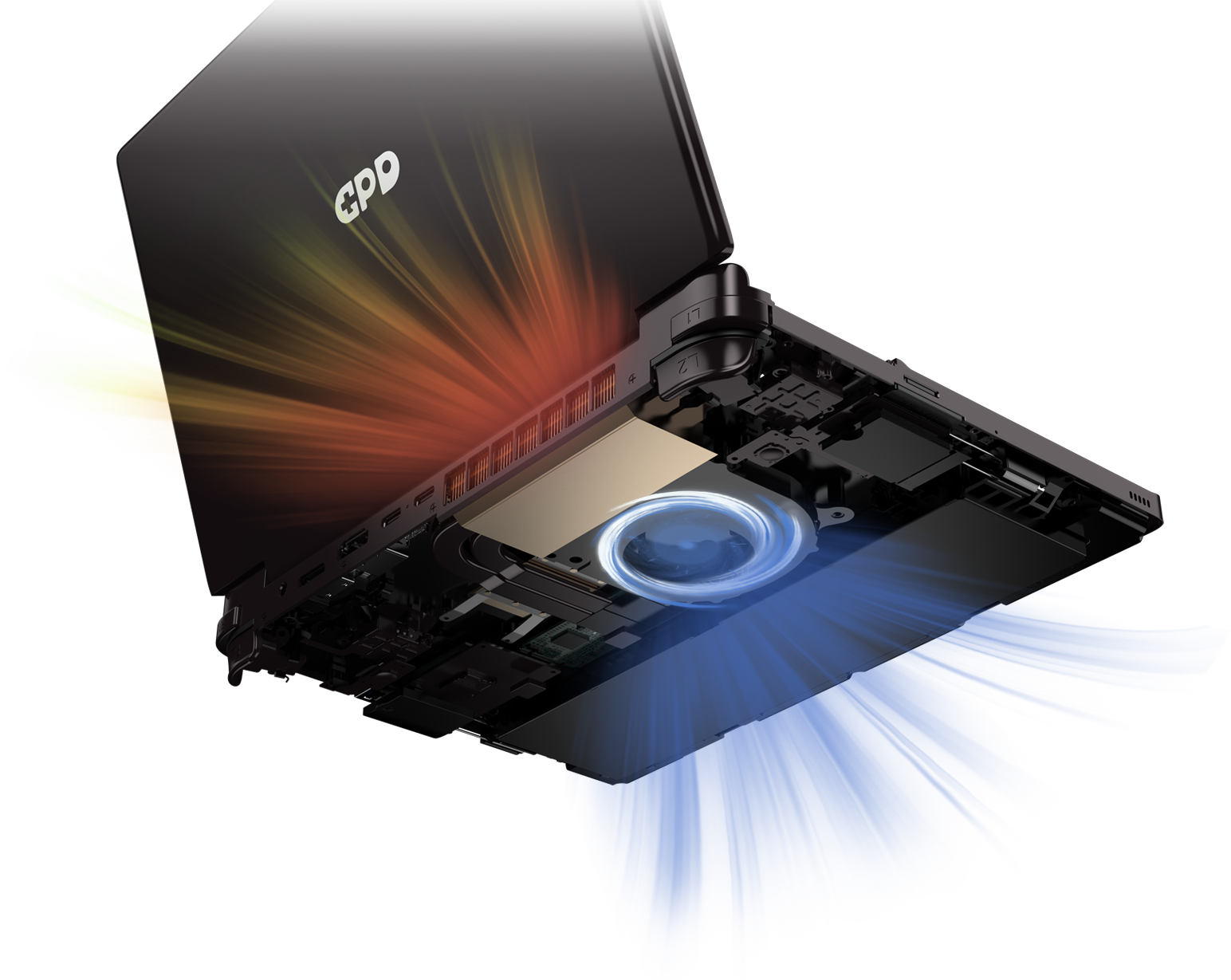

Highly Efficient Intelligent Cooling Solution With A Large Turbo Fan And Dual Heat Pipe Design

WIN Max 2 2023 comes with an improved PC-grade cooling system with a large turbo fan + dual heat pipes, which boasts high volume side air blow and highly intelligent speed control. When the internal temperature is lower than 40°C, the fan speed will not exceed 20% of its maximum capacity. When the internal temperature reaches higher than 40°C, the fan speed goes up in 2% PWM increments until reaching its maximum threshold (100%).

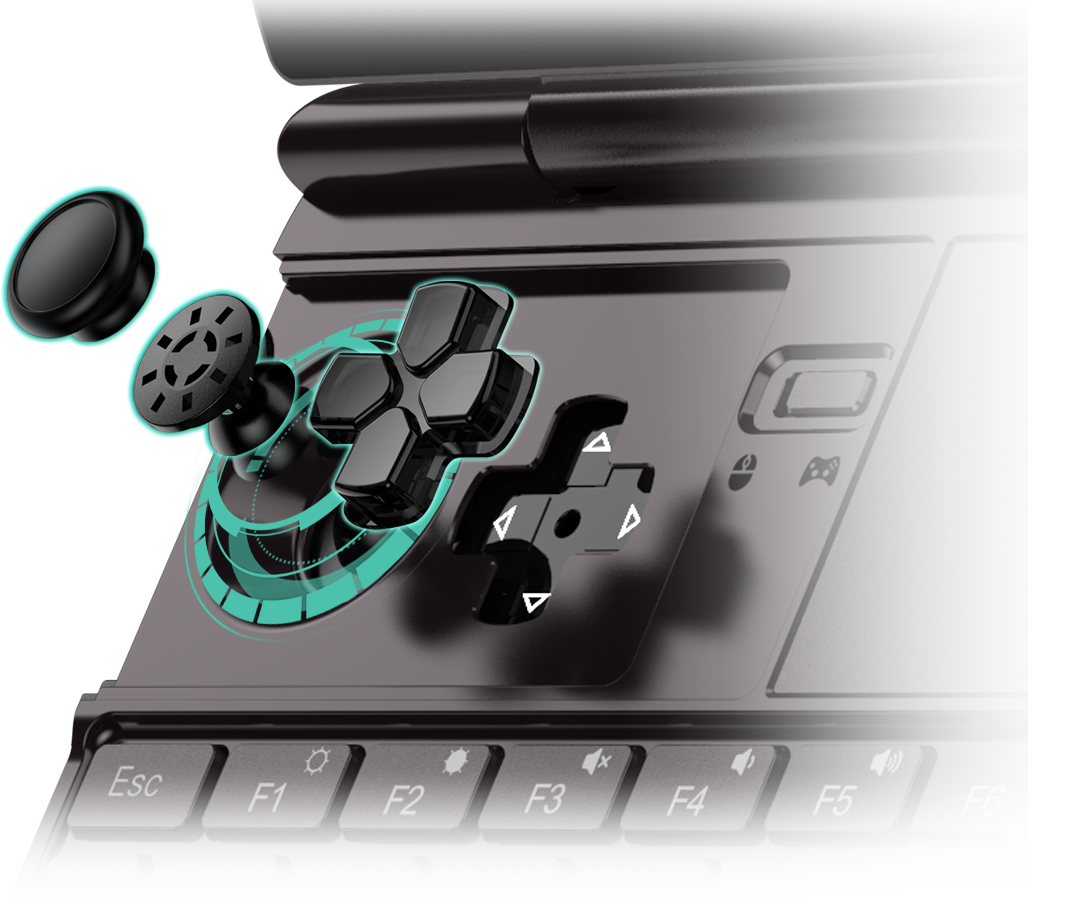

Hall Sensor Sticks (First Time In Our Devices), Stepless, Great Linearity, No Dead Zone Neither Stick Drift

The traditional potentiometer stick that relies on the resistance brush to generate the voltage signal is prone to "drift" issues caused by wear and tear in long-term use. With WIN Max 2 2023, we’ve introduced for the first time Hall Sensor sticks with built-in inductance coils. The working principle of magnetic induction (different magnetic fluxes are generated when the stick rotates to different positions, which in turn generates different voltage signals) determines that Hall Sensor sticks have no wear and tear, and therefore won't have the issue of stick drift! The sticks also adopt a stepless design for achieving 360° super-linear signal output without any dead zone.

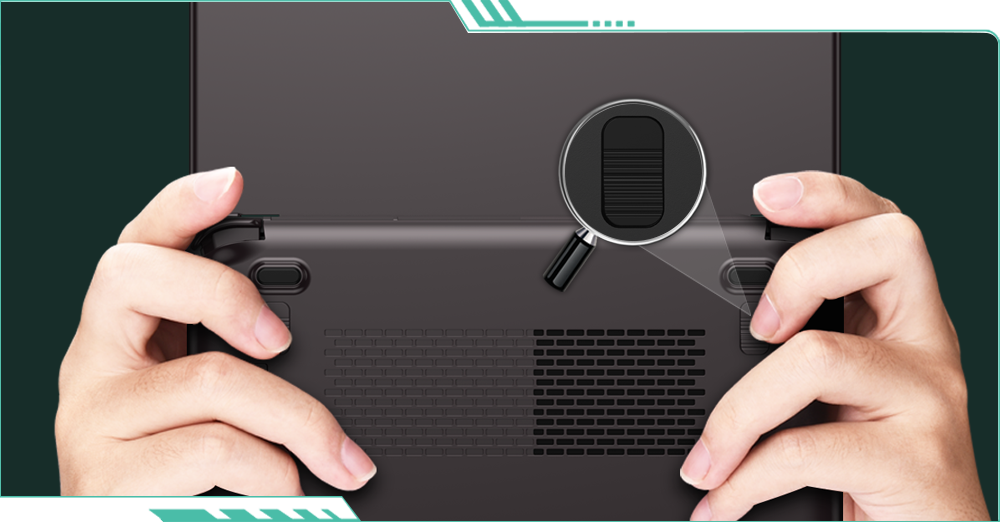

2 Mappable Back Buttons For Flexible Customization For Gaming Control Or Software Shorcuts

To enable quick response in games, WIN Max 2 2023 has 2 mappable buttons like on WIN 3's back, which can be set to any in-game control actions with the WinControls tool, allowing for quick actions without using the keyboard and enhancing the gaming experience!

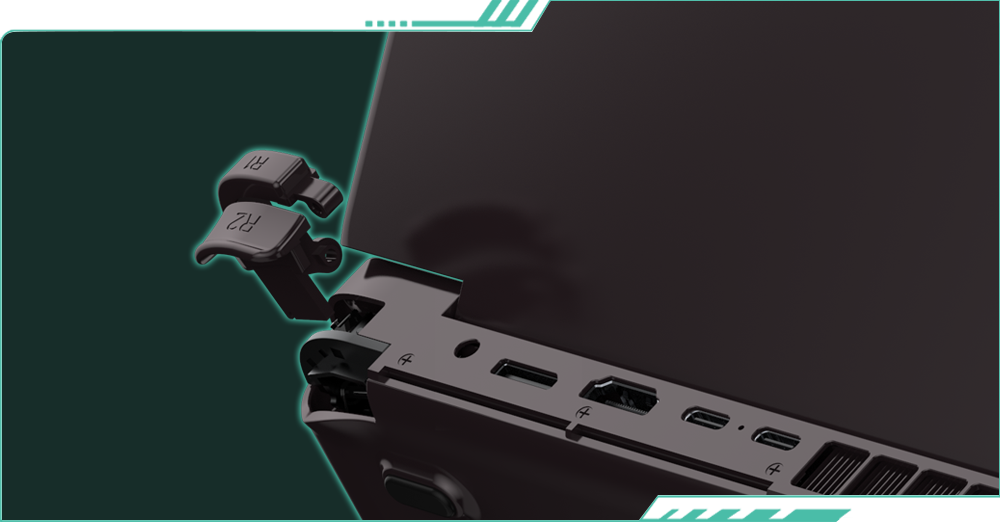

Analog Triggers That Simulate "Gun Triggers" Or "Throttle Pedals"

Analog triggers supporting 256 levels of feedback, allowing a more "immersive" gaming experience, including progressive acceleration in racing games and trigger-pulling sensation in shooters.

Dual Vibration Motor With Software Control (Off, Weak, Strong)

The built-in dual vibration motors can give you more "realistic" feedbacks when you are performing in-game actions such as shooting guns and starting vehicles! The vibration intensity can be adjusted through a software solution (there are three levels, named "off", "weak" and "strong")

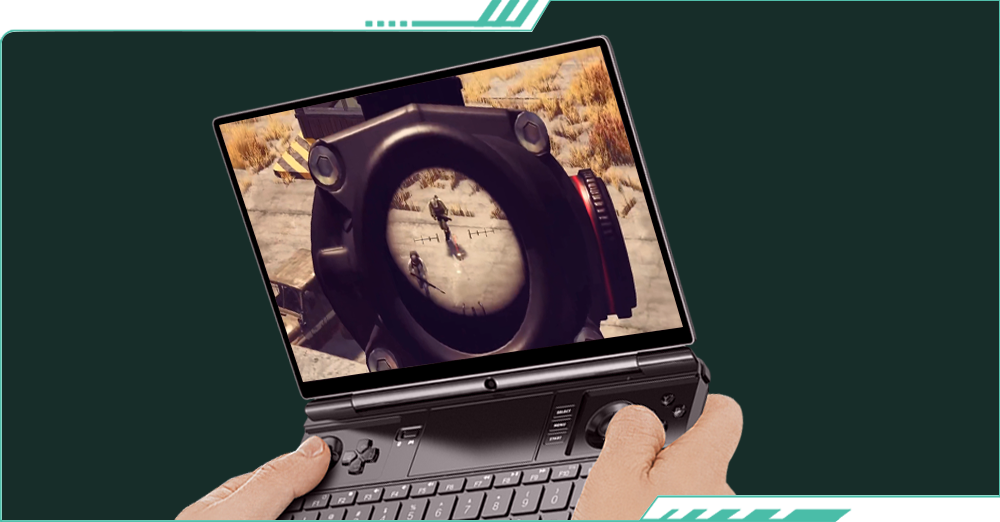

6-axis Gyroscope And Dedicated Setting Software For Perfect Gaming Control With Motion Sensing

With a built-in 6-axis gyroscope, WIN Max 2 2023 supports control with motion sensing and could be used for various games such as racing titles, which helps enhance the fun and depth of the gaming experience. The dedicated gyroscope setting software supports free adjustment of various functional parameters for more flexible viewpoint control!

Built-in Magnetic Controller Cover To Switch Instantaneously Between A Gaming Handheld And A Business Laptop Modes At Any Moment

The game controller built into the handheld gaming PC can make it unsuitable for the workplace! To solve this problem, we added two stick covers for WIN Max 2 2023. The magnetic design ensures that the two covers won't fall off when using the device. When playing games, you can also stow the covers in the rear compartment, which helps prevent accidental loss!

The Front Side Is The Cover, The Back Side Is The Storage Compartment. Actual Effect Demonstration

The effect image of the front cover and the back storage, when it covers, it is a 10.1 inch notebook. when gaming, you can insert the cover into the storage compartment on the back!

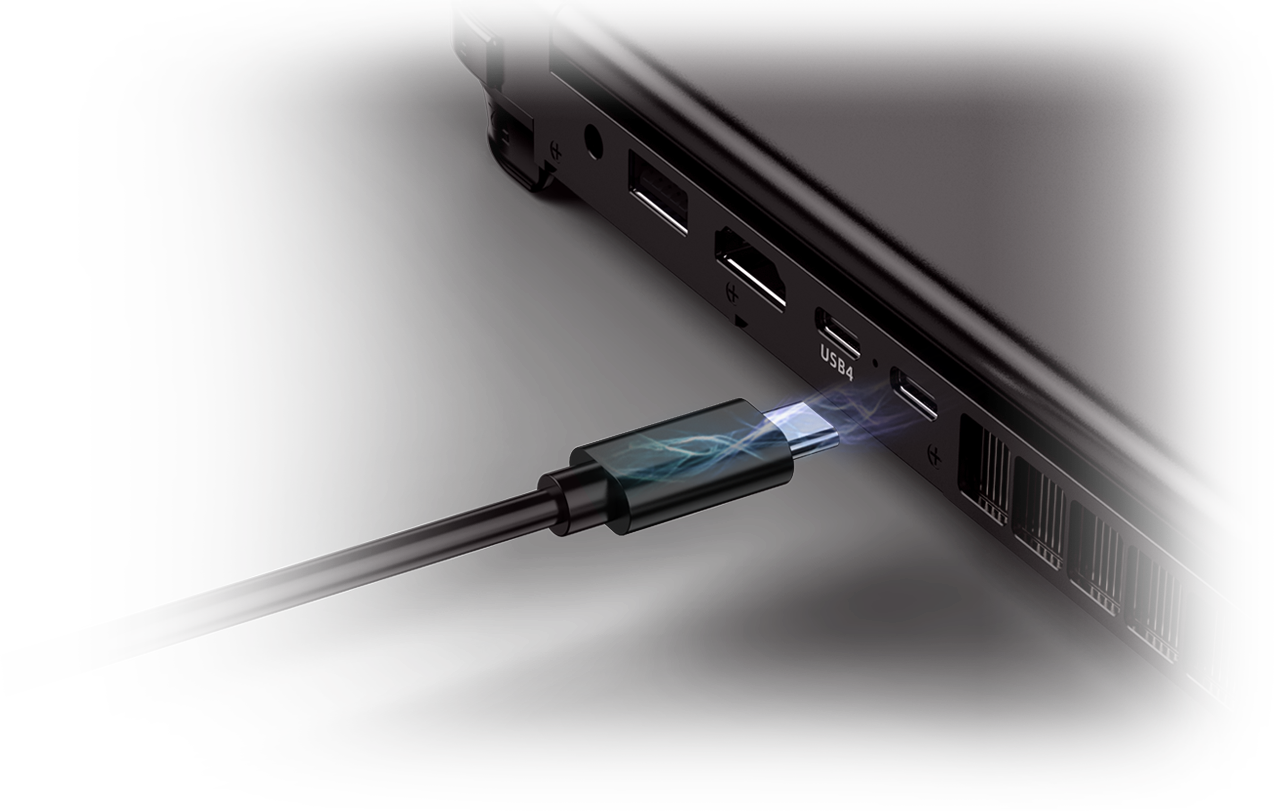

With A Full-Speed USB4 Interface Providing Up To 40Gbps Of Bandwidth, It Supports External eGPU For Smooth Gameplay Of AAA Games

AMD users, behold! The AMD version of WIN Max 2 has a USB4 port supporting up to 40Gbps transfer rate. The USB4 interface natively supports the Thunderbolt 3 protocol, so now you can play games with the AMD version of WIN Max 2 connected to a Thunderbolt 3 eGPU!

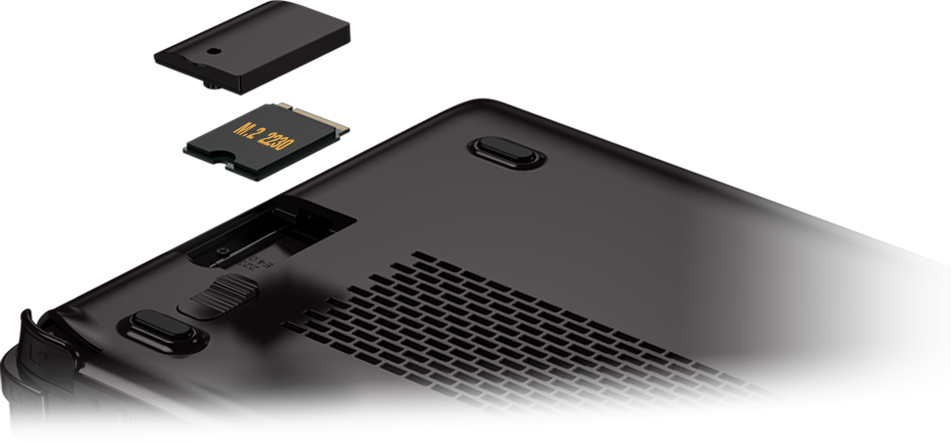

Comes With One Large Capacity M.2 2280 SSD And One M.2 2230 Slot For Easy Capacity Expansion

For the unlimited expansion of storage space, in addition to an M.2 2280 slot already occupied by the machine's own nvme ssd, there is also an M.2 2230 slot on the back of the Max 2's motherboard. Both slots are based on the PCIe 4.0 × 4 bus, with a theoretical throughput of up to 7.877GB/s. Due to restraints in terms of body thickness, both M.2 slots only support single-sided SSDs. The machine comes with a PCIe 3.0 SSD. If you want faster read and write speeds, you can replace it with a PCIe 4.0 SSD.

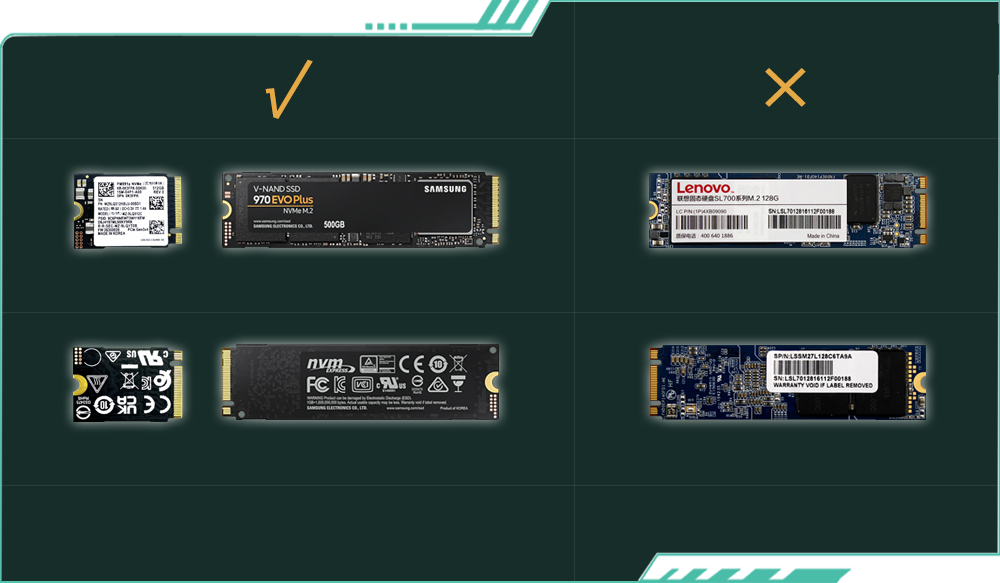

Note: Max 2 Only Supports Single-sided SSDs

WIN Max 2 2023 supports 2230 and 2280 SSDs, but the SSD itself must be single-sided rather than double-sided!

Front Patch

Front Patch

No Patch On The Back

Back Patch

Single Side Device Layouts

Double Side Device Layouts

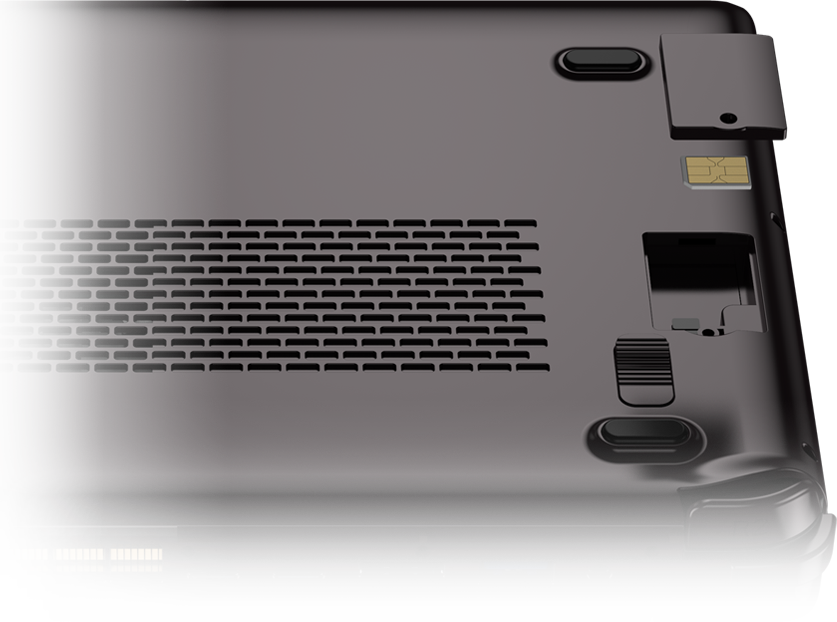

Optional 4G LTE Module With Full Operator Support For Gaming Anytime, Anywhere

After the launch of the first-generation GPD WIN handheld, some users suggested we should add a 4G LTE module to the follow-up products, so that they can play online games anytime, anywhere. However, due to various constraints (internal space, heat generation, cost, etc.), we had been unable to add this feature in the past. This time, we finally did it, adding a 4G LTE module that supports 4G TD-LTE, FDD-LTE and 3G CDMA in WIN Max 2 2023, which is comparable in performance to mainstream laptops and can be used in more complex scenarios.

Considering that some users may not need 4G capabilities, we have adopted a detachable module design, allowing anyone who needs a 4G connection to put the module into the slot on the back of the machine. The operation is very easy, just remove the cover and slot in the module and you are done！

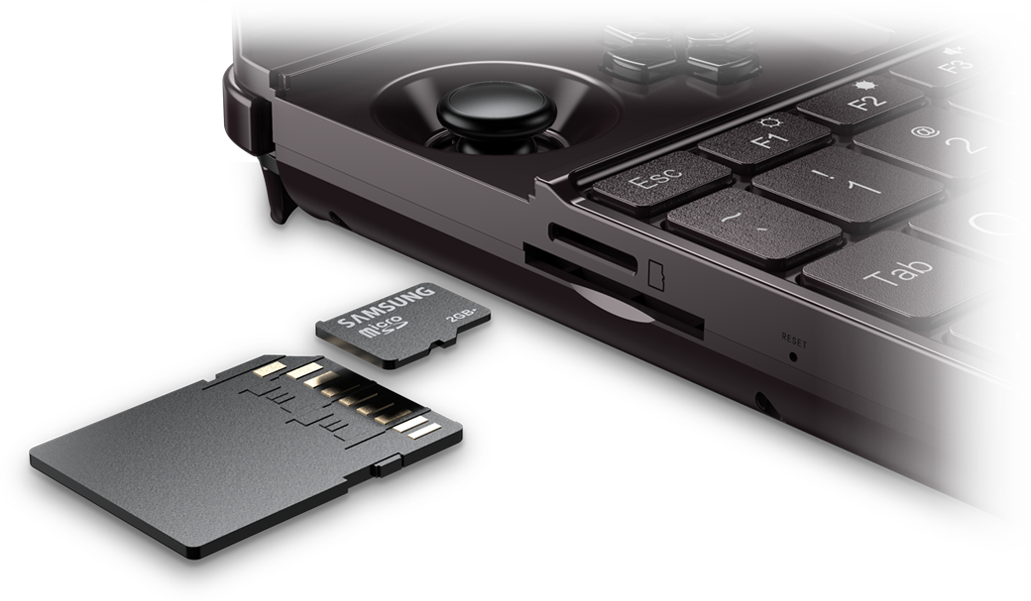

High-speed SD And MicroSD Slots Added For Photographers/Players

GPD users include photography enthusiasts who need to transfer a large number of photos to their notebooks. For them, one disadvantage of the small, portable GPD handheld compared to larger notebooks is the lack of a built-in SD card slot. And we've finally made up for this shortcoming with WIN Max 2 2023!

The SD slot of WIN Max 2 2023 is connected to the UHS-II bus. Based on the SD 4.0 bus protocol, it supports the transmission of up to V90 video files at a read and write speed of up to 312MB/s and inserting an up to 2TB SDHC/SDXC/SDUC card.

WIN Max 2 2023 is also equipped with a microSD card slot that is connected to the UHS-I bus, supports the transfer of U3, files at a read and write speed of 100MB/s, to a microSDHC / microSDXC / microSDUC card.

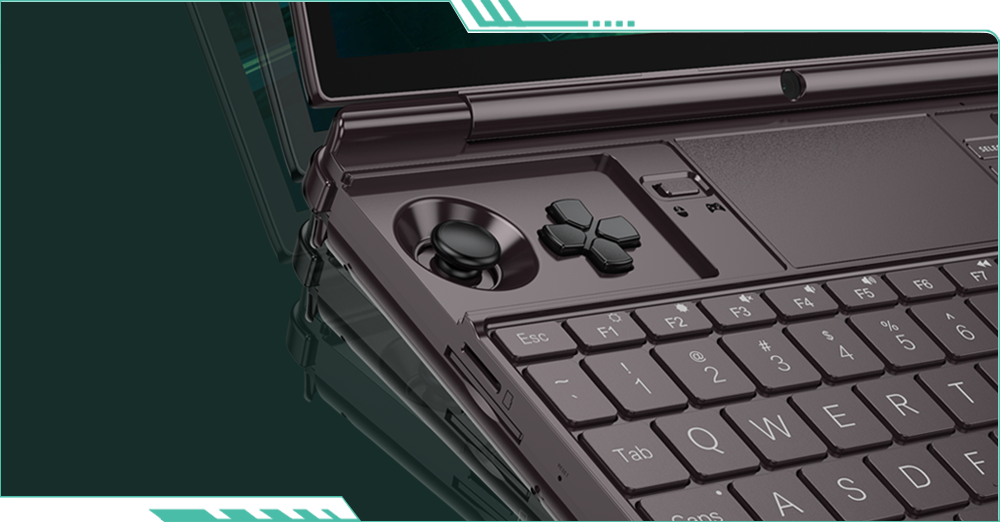

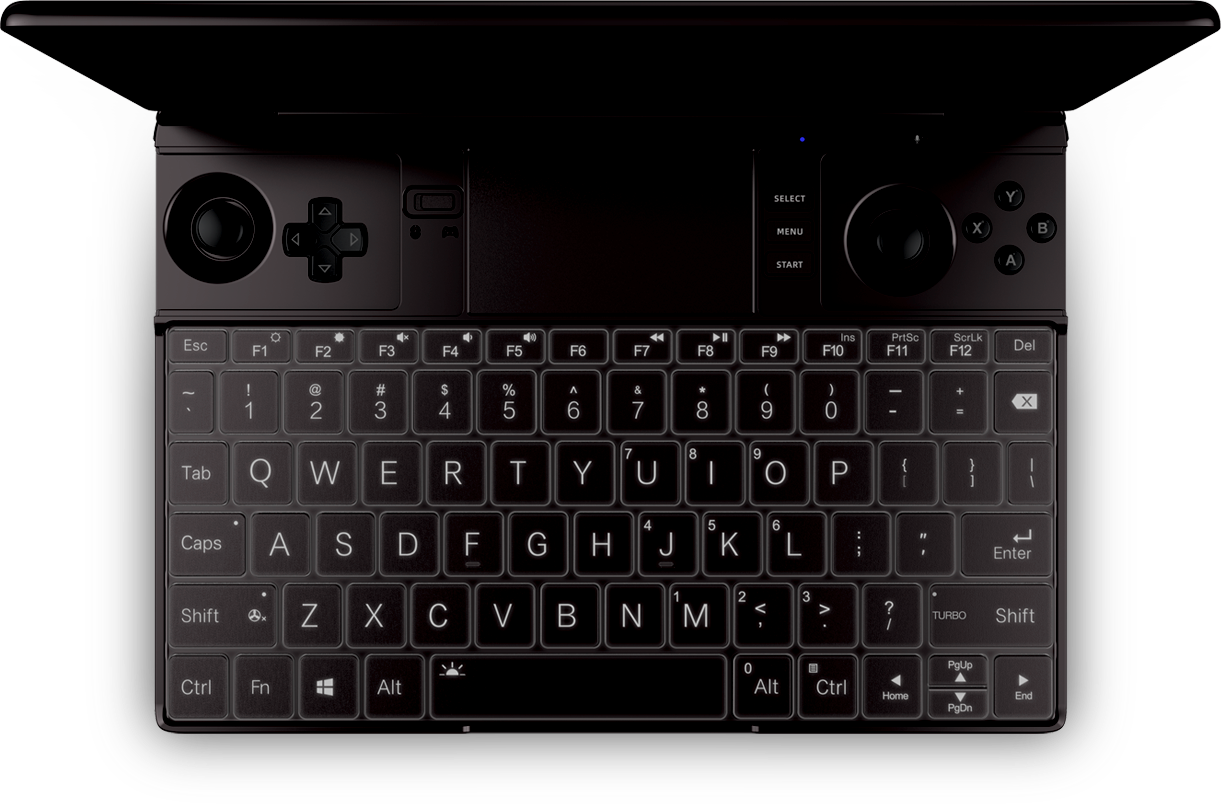

Backlit Keyboard With 2-level Brightness Adjustment And Precision Touchpad With Gesture Customization Support, All For Higher Input Comfort

To improve the typing experience, we've added a backlit keyboard that has 2 brightness levels to WIN Max 2 2023, allowing you to always see legends comfortably regardless of the ambient brightness. In addition, to address concerns about touch accuracy and improve touch input comfort, we've also added the Precision Touchpad driver for WIN Max 2 2023, which supports touch gesture customization with the Touchpad configuration tool that comes with Windows.

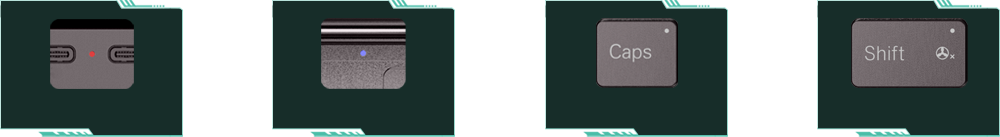

4 Indicators For Fast Checking Of Current Working Status

The machine is equipped with 4 working status indicators (caps lock, fan on/off, running status, charging status), allowing you to quickly understand the current running status after performing related operations.

Caps Lock

Fan On/Off

Running Status

Charging Status

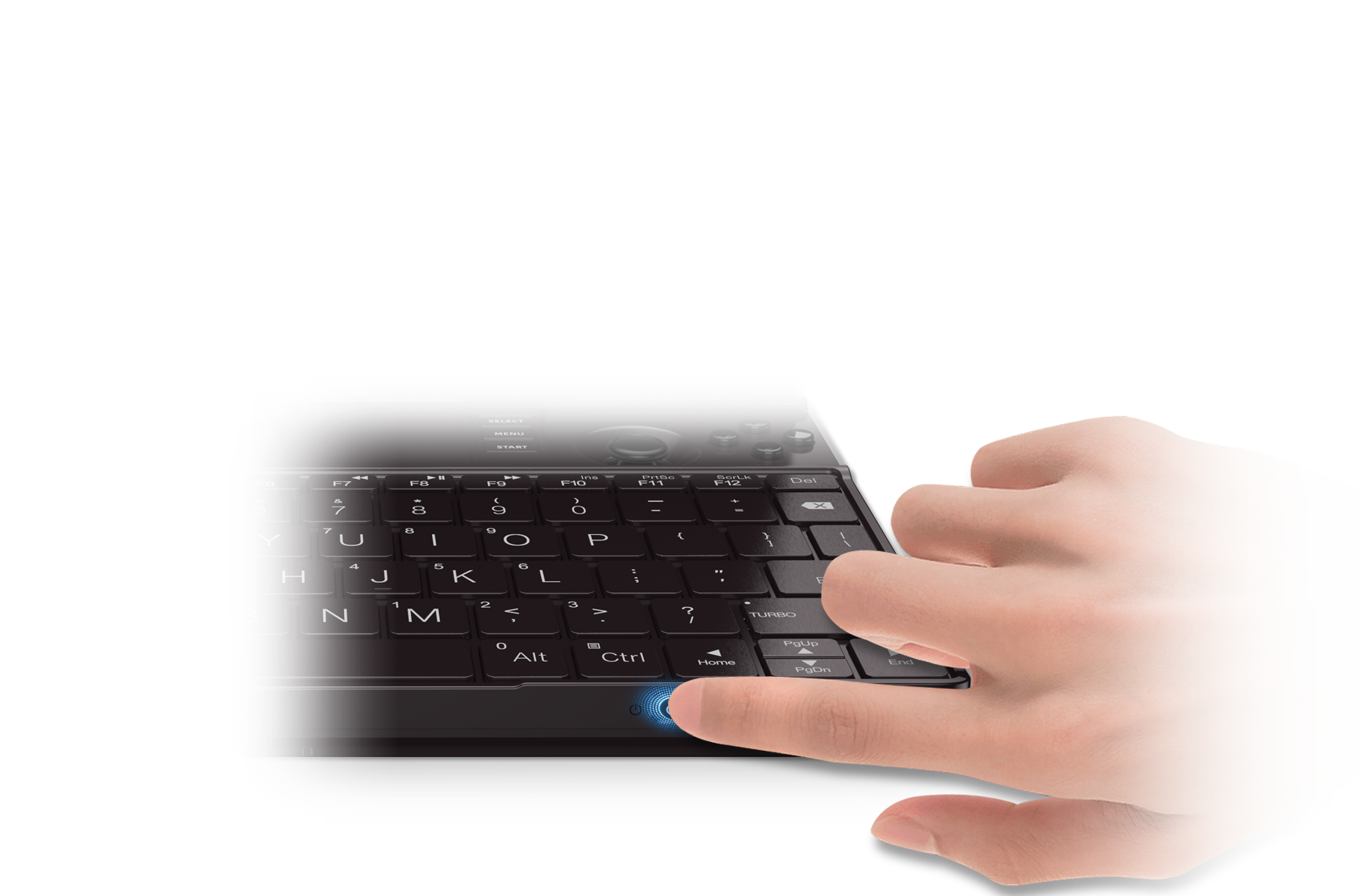

First Of Our Device To Introduce Side Mounted Power Button With A Fingerprint Sensor

The power button of a traditional laptop would mostly be on its C side. So, when using the laptop with an external monitor, it will be locked every time you close the laptop and leave, to use it again you must open the top cover and enter the password, which can be very troublesome. To solve this problem, WIN Max 2 2023 is equipped with a side mounted power button with a fingerprint sensor, which allows for a very convenient one-click power on + unlock (regardless of whether the machine is closed or not)!

4 Super-Linear Speakers, Top-Tier DTS:X Ultra Audio, Delivering Immersive Surround Sound Experience In The Palm Of Your Hand

It features 4 premium German AAC super-linear speakers, supporting DTS:X Ultra audio. The DTS:X Ultra audio effect utilizes a new algorithm based on psychoacoustics and HRTF technology to process audio output in headphone and speaker devices according to the gaming environment. The DTS:X Ultra audio effect can be fine-tuned using a 10-band graphic equalizer, allowing users to enjoy different equalizer settings. It can simulate a physical 7.1 channel sound effect. Additionally, you can optimize the audio spectrum through a hearing test, fine-tuning the audio for headphone and built-in speakers. With both headphones and built-in speakers, you can experience surround sound from all directions - up, down, left, right, front, and back, providing a high-quality immersive audio experience.

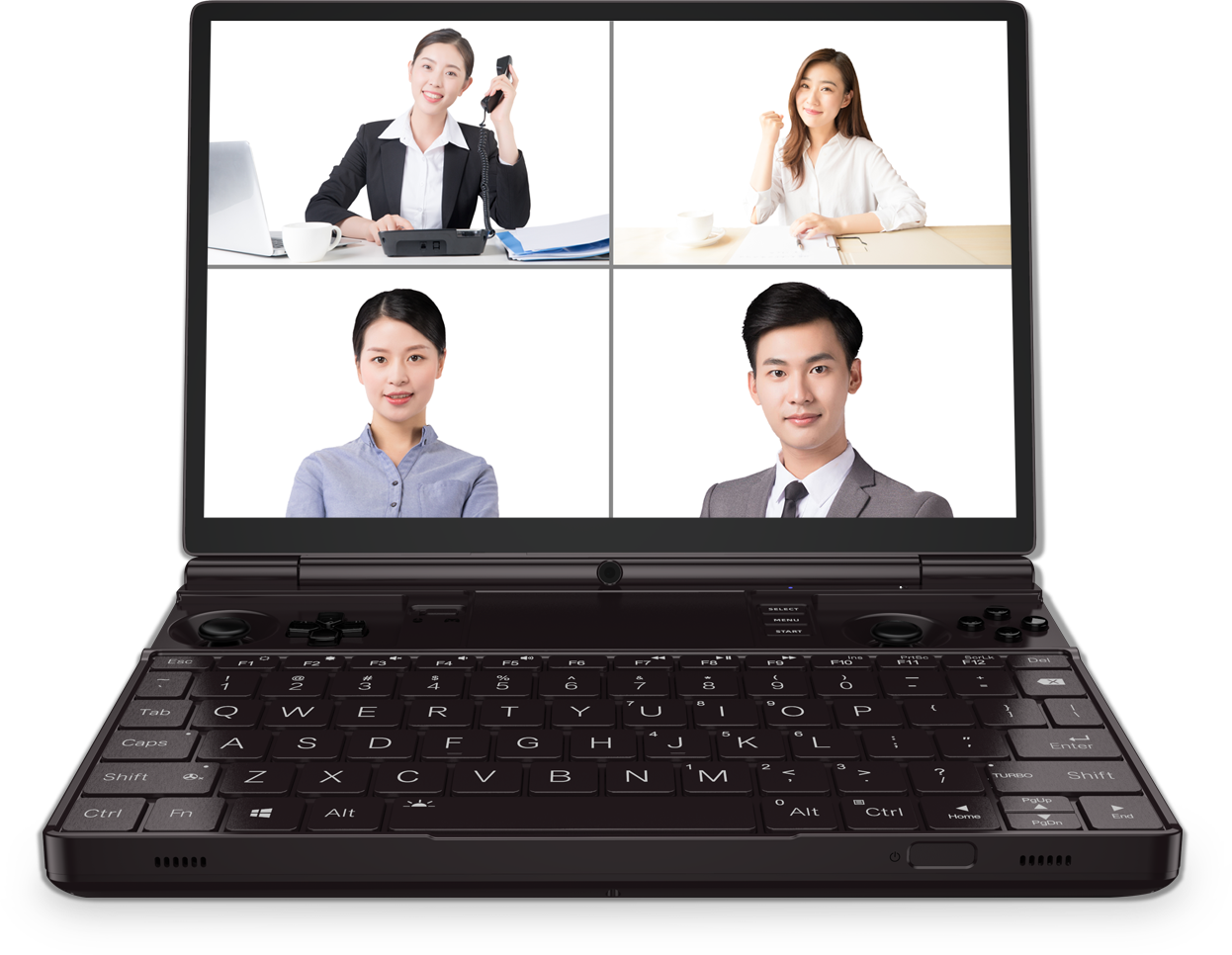

Built-in 2 Million Pixel Camera With Ultra-wide Viewing Angle And High Refresh Rate

WIN Max 2 2023 has a built-in 2-megapixel camera with a maximum resolution of 1612×1212. It boasts an ultra-wide viewing angle and a high refresh rate for a better live video conferencing experience.

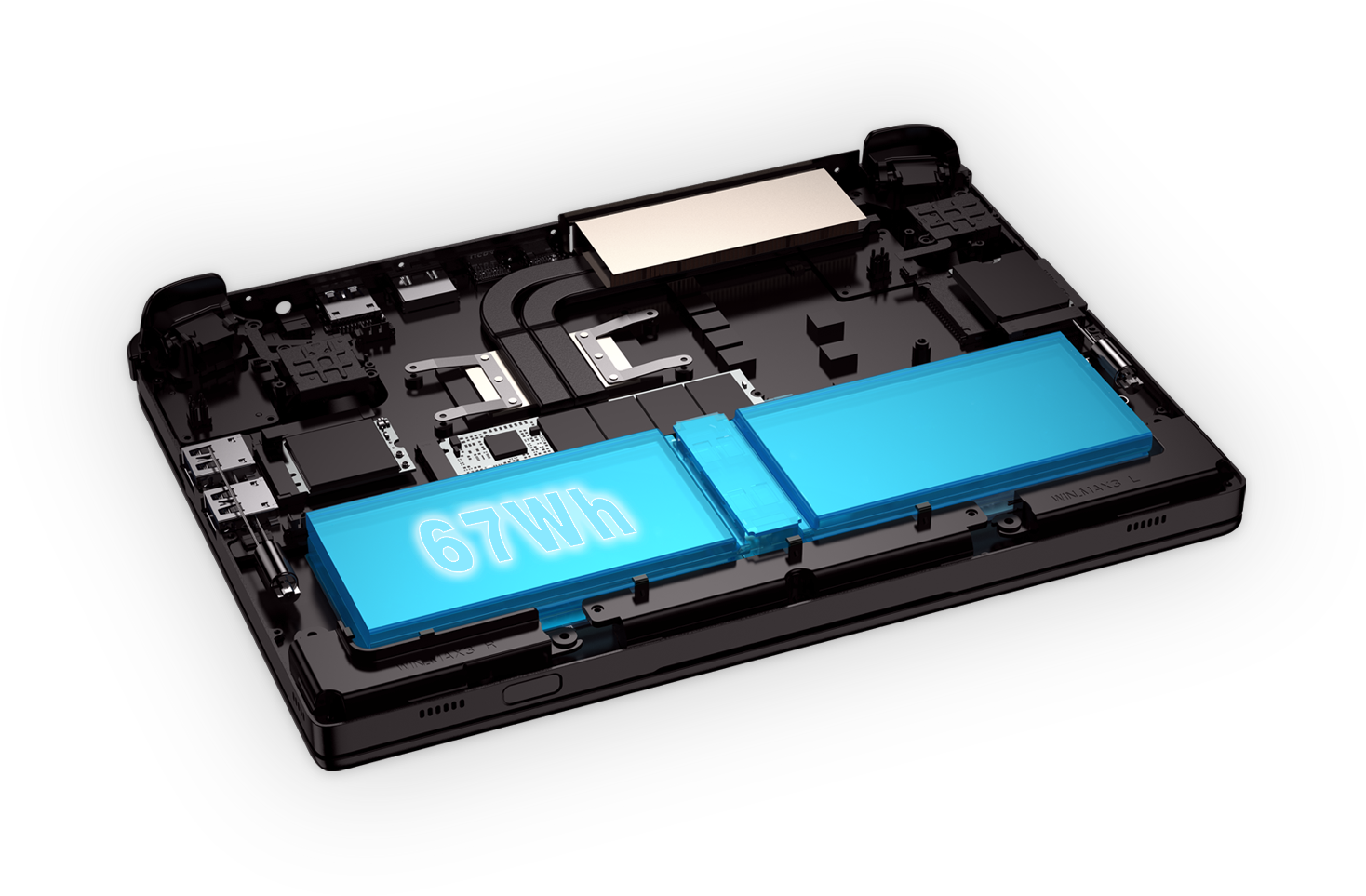

67Wh High Capacity Battery, Supporting Up To 5 Hours Of Continuous Gaming

With a higher capacity (67Wh) than all thin and light laptops on the market, Max 2 brings you the ultimate experience in terms of battery life. With only one full charge, the battery supports up to 14 hours of office work, 6~8 hours of local 1080P video playback, and 5 hours of gaming.

100W PD Super Charger , From 0 to 50% In About 20 Minutes

The included PD 3.0 100W super charger can charge the machine from 0 to 50% in about 20 minutes. A 5-minute charge can support up to 2 hours of work. Also, the charger supports all fast-charging protocols for phones and tablets, so it can be the only charger you carry when going out!

Tech Specs

Screen : 10.1 inches，10 Points-touching
CPU : AMD Ryzen 7 7840U / AMD Ryzen 5 7640U
GPU : AMD Radeon 780M / AMD Radeon 760M
DDR : 64GB / 32GB / 16GB, LPDDR5x-7500 MT/s
Storage : 2TB / 1TB M.2 2280 NVMe SSD
Oculink Slot (SFF-8612) : × 1, 63Gbps
USB4 Slot : × 1, 40Gbps
USB Type-C Slot : × 1, 3.2 Gen2
USB Type-A Slot : × 2, 3.2 Gen2
microSD Slot : × 1, UHS-Ⅰ A1, U3
SD Slot : × 1, UHS-Ⅱ V90
HDMI Slot : × 1, 2.1
Wireless Network : Wi-Fi 6
Bluetooth : 5.2
Battery : 67Wh

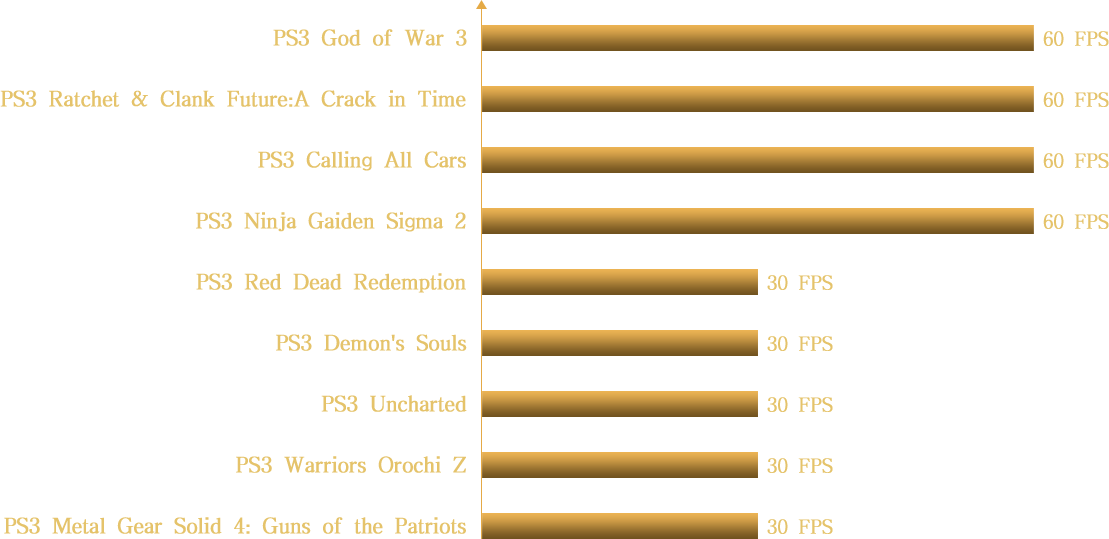

Thanks To The Support Of AVX-512, "God Of War 3" On PS3 Can Run At 60 Fps Per Second, And The 7840U Achieves Full-Speed PS3 Emulation

To play emulators smoothly, a higher performance CPU is required. With the support of the AVX-512 instruction set and the all-new RDNA3 architecture integrated graphics, emulators such as RPCS3, Yuzu, Gitra, Vita3K, and Xenia can achieve up to 30% performance improvement

Test benchmark: AMD Ryzen 7 7840U / 16GB LPDDR5x-7500 MT/s / 1TB M.2 NVMe SSD / 1920×1200 / Windows 11 Home 64bit
Unless specified otherwise, FSR is disabled by default during testing!
