GPD WIN 5
The Strongest Performance, Detachable Battery Design
The World's First Handheld Console Based on the AMD Ryzen™ AI Max+ 395 Processor
7-inch, 120Hz Gaming Display, 128GB LPDDR5x 8000 MT/s Unified Memory
Weighing Only 590g, With an External 80Wh Removable Battery
Compared to Steam Deck
What are the Advantages of WIN 5?
To date, the WIN 5 is the world's most powerful handheld console, boasting multiple groundbreaking innovations. Its processor delivers exceptional performance, with CPU and GPU capabilities five times stronger than Steam Deck's custom APU
Parameters
Screen Size
CPU
Base Frequency
Max Turbo Frequency
TDP
GPU
GPU Frequency
Execution Units
Shaders
Memory Type
Storage Type
Storage Capacity
Bus Standard
Transfer Protocol
Data / Video / Charging Ports
Input Devices
Battery Capacity
Fast Charging
Dimensions
Handheld Weight
GPD WIN 5
7-inch LTPS high-refresh gaming display
AMD Ryzen™ Al Max+ 395
3.0GHz
5.1GHz
45~75W
AMD Radeon 8060S（RDNA 3.5）
2.9GHz
40CUs
2560
32GB / 64GB / 128GB LPDDR5x 8000 MT/s (quad-channel)
M.2 2280
1TB / 2TB / 4TB
PCIe 4.0 × 4
NVMe 1.4
1×USB4 (40Gbps, full-speed)
1×USB 3.2 Gen2 Type-C (DP 2.1, 10Gbps)
4×USB 3.2 Gen2 Type-A (10Gbps, 1 on device, 3 on dock)
1×USB 3.2 Gen2 Type-C (charging only, dock-provided)
1×HDMI 2.1 (dock-provided)
1×RJ45 (dock-provided)
1×Mini SSD slot
1×microSD card slot
1×Battery charging port
Capacitive joysticks
Hall-effect triggers (4096 levels)
Right joystick supports mouse emulation
80Wh (removable)
180W DC
267mm × 111.6mm × 24.21mm
590g (detachable cable design), 940g (dock-attached mode)
Steam Deck
7–7.4-inch LCD / OLED
AMD Custom 0405
2.8GHz
3.5GHz
15W
Customize（RDNA 2）
1.6GHz
8CUs
512
16GB LPDDR5 5500 MT/s (32-bit quad-channel)
M.2 2230
64GB / 256GB / 512GB / 1TB
PCIe 3.0 × 2
NVMe 1.3
1×USB 3.2 Gen2 Type-C
1×USB 3.1 + USB 2.0 Type-A (dock-provided)
1×HDMI 2.0 (dock-provided)
1×DisplayPort 1.4 (dock-provided)
1×RJ45 (dock-provided)
1×microSD card slot
Carbon-film potentiometer joysticks
Linear triggers (1024 levels)
Right joystick supports mouse emulation
50Wh (built-in)
45W PD fast charging
298mm x 117mm x 49mm
669g
AMD Ryzen™ AI Max+ 395
Peak Performance, Ultra-powerful AI, Unmatched Energy Efficiency
WIN 5 adopts an all-new 16-core ZEN5 architecture with Chiplet packaging technology, distributed across two independent CCDs, integrating a discrete GPU-level Radeon 8060S and the brand-new XDNA 2 NPU, sharing data through unified memory. Its multi-core performance surpasses the desktop processor Intel Core i9 14900.
Top-tier μArch
16x Zen 5
CPU Cores / Threads
16 C / 32 T
Base Clock / Boost Clock
3.0 GHz / 5.1 GHz
NPU TOPS
50 TOPS
Overall TOPS
126 TOPS
Geekbench R23 Score Comparison Between Desktop CPUs
31756
2029
31070
2029
2212
2029
30468
2082
28684
2156
27817
2041
27399
2281
Multi-Core
Single-Core
AMD Ryzen AI Max+ 395（120 W）
Intel Core i9 14900（219 W）
Intel Core i7-13700K（253 W）
Intel Core Ultra 7 265（182 W）
AMD Ryzen 9 7900X3D（162 W）
Apple M4 Max (16-Core)（90 W）
Game Name
Apex legends
Shadow of the Tomb Raider
Borderlands 3
Watch Dogs: Legion
Forza Horizon 5
Marvel Rivals
Assassin's Creed Mirage
Assassin's Creed Valhalla
Kingdom Come: Deliverance II
Baldurs Gate 3
Red Dead Redemption 2
God of War：Ragnarok
The Witcher 3：Wild Hunt
Dying Light 2 Stay Human
Hogwarts Legacy
Ghost of Tsushima
Marvel’s Spider-Man 2
Cyberpunk 2077
Indiana Jones and the Great Circle
A Plague Tale: Requiem
Warhammer 40,000: Space Marine 2
Black Myth: Wukong
Baldur's Gate 3
Metro Exodus
Alan Wake 2
Avatar: Frontiers of Pandora
Starfield
Marvel’s Spider-Man 2
Alan Wake 2
Cyberpunk 2077
Stalker 2: Heart of Chornobyl
Microsoft Flight Simulator 2024
FPS（AVG）
192
119
109
105
98
98
93
79
76
75
75
74
74
72
72
71
71
70
70
68
66
65
64
63
61
60
52
51
46
45
43
42
Settings
Maximum
Ultra
Ultra
High
Maximum
High
Maximum
Ultra
High
Ultra
High
Ultra
High
High
High
High
Maximum
Ultra
Medium
High
High
Medium
High
Ultra + RT
High
High + TAA
High
Maximum + RT
High + RT
Ultra + RT
High
Medium
In-game Average FPS, 55~75W TDP
*Test environment: AMD Ryzen™ AI Max+ 395 / 32GB LPDDR5x 8000 MT/s / 1TB NVMe SSD / 55~75W TDP / 1080p@120Hz / Windows 11 Home 64bit / DX 12
Note: Game frame rates may vary with platform and new driver updates, and will differ based on your selected configuration.
AMD Radeon 8060S Integrated Graphics, 96GB VRAM
Eliminating VRAM Anxiety, Surpassing NVIDIA RTX 4060 Mobile
The AMD Radeon 8060S features the RDNA 3.5 architecture with 40 CUs (2560 SUs), a 2.9GHz boost clock, and supports FSR 3.1. It can share up to 96GB of virtual memory, delivering exceptional graphics performance and AI acceleration while enabling efficient multitasking. Its performance rivals the NVIDIA RTX 4060 Mobile, offering high-frame-rate AAA gaming and professional-grade creative experiences.
AMD Radeon 8060S Benchmark Performance Versus Mobile Discrete Graphics
28764
11726
26919
2029
11675
2029
24373
11312
24016
10377
22123
10923
Fire Strike
Time Spy
AMD Radeon 8060S Graphics (TDP 55W)
NVIDIA RTX 4060 (Mobile TGP 55W)
AMD Radeon RX 7600M XT (Mobile TGP 55W)
NVIDIA GeForce RTX 5050 (Mobile TGP 55W)
NVIDIA GeForce RTX 3060 (Mobile TGP 45W)
128GB Unified Memory
4-channel LPDDR5x 8000 MT/s
Unified Memory Architecture (UMA) significantly enhances performance through a shared memory design. By enabling direct access to the same memory chip within the CPU, GPU, and NPU, it eliminates data migration bottlenecks inherent in traditional architectures, thereby reducing latency. With 96GB of allocated video memory, it supports 8K video rendering, scientific computing, and local inference for 70B-scale large models. The hardware-level consistency management simplifies programming while reducing power consumption, with actual measurements showing an 87% improvement in energy efficiency for AI tasks.
256-bit
LPDDR5x
128GB
8000MHz
Memory Channel
Quad-channel
70B-parameter Large Model (Q8)
Seamless Local Execution
GPD WIN 5 with 96GB VRAM (128GB Memory)
Building the Ultimate Local Supercomputing Center
The AMD Ryzen AI Max+ 395 processor, equipped with 128GB LPDDR5x 8000 MT/s unified memory (96GB allocated to VRAM) and 126 TOPS computing power, delivers smooth performance for 70-billion-parameter models. Benchmark results demonstrate inference speeds exceeding 10 tokens/s with a 235B-parameter model (quantized to Q4 precision).
Recommendations for Locally Deployed LLMs
LLM
DeepSeek
DeepSeek-R1
Llama 3
Qwen 72B
Qwen3
Llama 4 Scout
Parameter Count
70B
109B
70B
72B
235B
109B
Quantization Precision
Q8
Q4
Q8
Q8
Q4
Q4 + MoE
VRAM Usage
72-80GB
50-60GB
75-85GB
78-88GB
110-120GB
70-80GB
tokens/s
15-20
10-12
12-15
8-10
10-30
14-16
Applicable Scenarios
Complex reasoning & long-text generation
Enterprise-level complex tasks
Multi-turn dialogue & code generation
Multimodal tasks
Scientific research & creativity, multimodal preprocessing
Real-time interaction & multilingual simultaneous interpretation
Onboard High-speed M.2 Slot
Supports Single-sided SSD Component Layout
Optional 1TB / 2TB / 4TB M.2 NVMe 2280 SSD, supports single-sided M.2 PCIe Gen4 2280 SSD with no capacity limitation
GPD's New Frost Wind Cooling Architecture, Second-generation PC-grade Large Turbo Fan, Thickened Purple Copper, Four-heat-pipe Cooling System
Boost in Wind Pressure
500%
Airflow Uniformity
98.7%
Thermal Conductivity Breakthrough
8,000W/(m·K)
Airflow Efficiency Improved to
92.4%
Heat Flux Density Impact Resistance
Instantaneous 120W
Second-Gen PC-Grade Turbo Fan
● Aerospace-grade titanium-aluminum alloy blades (0.01mm precision)
● Magnetohydrodynamic bearings (<30dB(A) at 2000 RPM)
● 500% static pressure boost, 98.7% airflow uniformity
Nano-Level 4 Heat Pipe Array
● Superconducting copper-based capillary structure (8,000 W/(m·K))
● 0.3mm vacuum chamber, 0.015°C/W thermal resistance
● 120W surge tolerance, ±0.5°C temperature stability
Large-Displacement Side-Blow Duct
● 3D helical duct optimized via Darcy-Weisbach equation
● Nozzle with ballistic-missile-inspired convergent design
● 92.4% airflow efficiency, 40% system pressure drop reduction
The World's First Gaming Handheld With Built-in Mini SSD Slot, With an Area Only About 0.5 Times Larger than a microSDXC Card
Mini SSD card measures only 15×17mm in size, representing the next-generation of storage expansion innovation and a technological revolution to replace microSDXC cards. It supports up to 2TB capacity with PCIe Gen4×1 interface standard, delivering 1600MB/s sequential read/write speeds – 5 times faster than SDXC cards. Despite being slightly larger than microSDXC, its PC-level read/write speeds far surpass current mainstream flash memory.
Flash Memory Card Comparison Table (Sorted by Size)
Flash Memory Card
microSDXC
Mini SSD
CFexpress Type A
CFexpress Type B
SDXC
XQD
CFexpress Type C
Target Markets
Laptops, Smartphones, Tablets
GPD WIN 5 Exclusive
Consumer-grade Cameras
Professional Film/Video Equipment
Laptops, Consumer-grade Cameras
Compatible with Select Cameras
Professional Film/Video Equipment
Size (W x D x H)
15×11×1 mm
15×17×1.4 mm
20×28×2.8 mm
29.6×38.5×3.8 mm
32×24×2.1 mm
38.5×29.8×3.8 mm
54×74×4.8 mm
Bus Specification
UHS-Ⅰ
PCIe Gen4 × 1
PCIe Gen4 × 1
PCIe Gen3 × 2
UHS-Ⅱ
PCIe Gen2 × 2
PCIe Gen3 × 4
Speed
160MB/s
2GB/s
2GB/s
2GB/s
312MB/s
400MB/s
4GB/s
Supports A2-grade microSD Cards With Read Speeds Up to 160MB/s
UHS-I Ultra High-Speed bus port supporting SD 3.0 protocol with read/write speeds up to 160MB/s and 120MB/s. Compatible with microSDHC and microSDXC cards up to 2TB, meeting your demanding requirements for low profile high-speed storage. Whether storing large-capacity audiovisual files or transferring files quickly between devices, WIN 5 performs brilliantly!
UHS-I Bus
——
I/O Performance
Level
——
High-speed Read & Write
——
Video Speed Class
——
The World's Only Gaming Handheld With Capacitive Joysticks, Zero Dead Zone, and Pixel-level Aiming Precision
FPS E-sports grade capacitive joystick with ultra-high precision and sensitivity, 8000Hz sampling rate, 2000Hz report rate, 4000-level resolution, capable of detecting 0.09° angular deviation. Features recessed design with L3/R3 press support.
Sampling Rate
8000Hz
Reporting Rate
2000MHz
Resolution
4000-Level
Angular Offset Precision
±0.09° (Full Range)
Drift Resistance
Zero Drift
The Micro-sensitivity Advantage of Capacitive Joysticks: In games like Apex Legends, 0.09° precision enables crosshair movement within 1 pixel at 1080p resolution (assuming 90° field of view, 1920 horizontal pixels, where 1 pixel ≈ 0.046°).
Compared to Hall-effect Joysticks and Traditional Carbon-film Joysticks, Capacitive Joysticks Demonstrate Significant Practical Advantages in Real-world Performance
TS / Joystick Type
Angle Offset Accuracy
Minimum Detectable Displacement
Sampling Rate/Report Rate
Theoretical Lifespan
Drift Resistance
Env. Interf. Resistance
Controller Input Delay (ms)
Cost
Application Scenarios
Capacitive Joystick
±0.09° (Full Range)
0.004mm Minimum Detectable Displacement
8000Hz/2000Hz Sampling Rate
>5 Million Cycles (Theoretical Lifespan)
Zero Drift (Non-Contact Design)
<0.1% angle error (-20℃~60℃)
4.1±0.2ms Input Delay
High Cost (Requires Dedicated Sensor)
Esports FPS (Pixel-Level Aim Correction)
Hall Effect Joystick
0.15° (New) ~ 0.8° (Requires Bi-Annual Calibration)
0.04mm Minimum Detectable Displacement
1000Hz/500Hz Sampling Rate
2 Million Cycles (Lifespan)
NCD，Calibrate Hall joystick for magnetic drift
Drift Error ±3° (Periodic Calibration Required)
5.7±0.3ms Input Delay
Moderate Cost (Magnet + Hall Sensor Assembly)
Mainstream FPS/RPG Gaming
Carbon Film Joystick (Traditional)
0.3° (New) ~ 1.2° (Irreversible After 100K Cycles, Non-Calibratable)
0.05mm (Initial) ~ 0.2mm (Wear-Impacted)
500Hz/250Hz Sampling Rate
300K–500K Cycles (Lifespan)
Mechanical Wear-Induced Drift (68% Drift Rate After 500 Hours)
Drift Error ±5° (Accumulates Over Time)
10.2±1.3ms Input Delay
Low Cost (Bulk Procurement: $0.03 USD)
Casual Gaming
Features POM (Delrin) Limit Rings and All-metal Guide Rings for Joystick, Experience an Exclusive Smoothness
The joystick limit ring uses POM-C Delrin material to enhance wear resistance and durability, preventing abrasion and powder shedding. The joystick guide ring adopts brass with electroless nickel-PTFE coating, achieving a friction coefficient below 0.1, significantly improving operational smoothness.
Mechanical Properties of POM-C Delrin:
● Tensile Strength: 60-80 MPa
● Flexural Strength: 80-100 MPa
● Excellent creep resistance and dimensional stability
● Maintains toughness at low temperatures
● Low friction coefficient (0.07-0.1) with superior self-lubrication
All-metal Guide Ring:
● Brass with electroless nickel-PTFE coating
● Stable temperature resistance from -200°C to 260°C
● Composite coating hardness reaches 5.16GPa
● Wear rate significantly lower than hard chromium plating
● Friction coefficient of 0.07-0.09
● With exceptional self-lubrication properties
Trigger Precision
0.1mm
Input Latency
< 0.1ms
Potential Variation
256 Levels
The World's Only Handheld Console With Hall Effect Triggers, Featuring Long/Short Throw Dual-mode Switching
LT/RT adopt Hall-effect triggers with 0.1mm-level precision, delivering smooth and wear-free operation, zero-latency electromagnetic sensing, and a 10-million-cycle lifespan. They outperform analog triggers in precision, durability, and tactile feedback across racing, simulation, action, and shooting scenarios.
For Fighting Games, Retains Micro-switch Triggers With a Simple Long/Short Throw Switch Toggle
LT and RT feature a dual-mode switch for 'long/short travel', with long travel supporting 256 levels (0~255) and short travel supporting 2 levels (0 or 255), making them more suitable for action/fighting games.
Core Differences Between Hall-Effect Triggers and Linear Triggers
Hall-Effect Triggers
Non-contact magnetic sensing, outputs signals via field changes
256-level potentiometric precision with 0.1mm triggering accuracy
Smooth, frictionless operation (only affected by return springs)
Contactless design enables tens of millions of cycles in lifespan
Instantaneous electromagnetic response
Nearly silent (no mechanical collision noise)
Higher cost (common in mid-to-high-end controllers)
Ideal for high-precision throttle/brake control, enhancing immersion
Enables rapid trigger + precise recoil control in FPS games
Switchable to short-travel microswitch mode for fast triggering
Wear-resistant, perfect for prolonged fine-tuning operations
Types Comparison / Trigger
Working Principle
Precision
Tactile Feedback
Lifespan
Response Speed
Noise Level
Cost
Application Scenarios:
Linear Trigger
Mechanical potentiometer tracks press depth via resistance
Typically has 8-10-bit resolution with lower precision
Features mechanical damping that may cause occasional stuttering
Shorter lifespan (~500k cycles) due to physical wear
Slightly slower response limited by mechanical structure
May generate mechanical noise
Commonly standard entry-level equipment
Basic linear control but susceptible to drift over time
Suitable only for basic shooting needs
Not ideal for action/fighting games
Requires frequent calibration and maintenance
RAC
STG
ACT & FTG
SIM & FLY
247 Tests Offering the Most Optimized Cavity Design, Creating an Ergonomic and Comfortable Grip
The improved version based on WIN 4 features a streamlined design with a 15° tilt angle, evenly distributing hand pressure for fatigue-free prolonged gaming. The palm grip precisely stimulates the palmar tendons, instantly triggering muscle memory for plug-and-play readiness. The cavity design, optimized through 247 tests, accommodates 16-20cm palm widths, achieving vacuum-level fit and 30mm ideal key spacing.
Ultra-low Latency
2.3ms
Tactile Sync Rate
200% Stronger than PS5
Ultra-wide Frequency Response
20-1000Hz
Vibration On/Off Toggle
35%↓ Power
Built-in Dual Large Vibration Motors With Adjustable Strong / Weak / Off Vibration Settings
Dual vibration motors with on/off support, adjustable strong/weak vibration intensity, and 20-1000Hz ultra-wide frequency response to experience authentic in-game physics feedback. Dynamic damping algorithm intelligently switches impact modes, accurately transmitting firearm recoil and power-accumulation feedback.
2 Customizable Back Buttons With Mappable and Programmable Functions
Why do professional gamers choose WIN 5? Utilizing customizable back buttons, in PUBG's final round, they can instantly return to the settings interface, set sensitivity in 2.3 seconds faster than opponents. In Call of Duty, pressing the back button triggers a '4-round burst + 0.1s interval' for perfect recoil control, improving recoil compensation accuracy by 60%.
6-axis Gyroscope, Smooth and Unrestricted Motion Gaming
The cutting-edge 6-axis gyroscope technology, integrated with 'MotionAssistant', precisely detects tilt/rotation to recreate authentic steering wheel feedback – transforming racing games into virtual cockpits where drifting through corners feels like handling a real car. Raising guns automatically activates gyro-assisted aiming adjustments, while swinging arms directly triggers dunks or shots, delivering full motion immersion for racing, shooting, and sports gaming.
Programmable LED Mode Switching
Joystick-to-mouse Emulation
Unlike WIN 4, WIN 5 abandons the 'sliding switch' design of WIN 4, replacing it with indicator light toggling for easier user recognition. Additionally, it can be integrated into 'MotionAssistant' for software-based control.
Press Feedback Mechanism
Optical Finger Mouse
WIN 5 retains the optical finger mouse, a more comfortable mouse input than touchpads, supporting press-down input.
Dual Mouse Control Modes With Seamless Switching for Customizable Precision Control
WIN 5 still supports right joystick mouse simulation, requiring pressing the 'Controller/Mouse Toggle Button' to switch mouse modes.

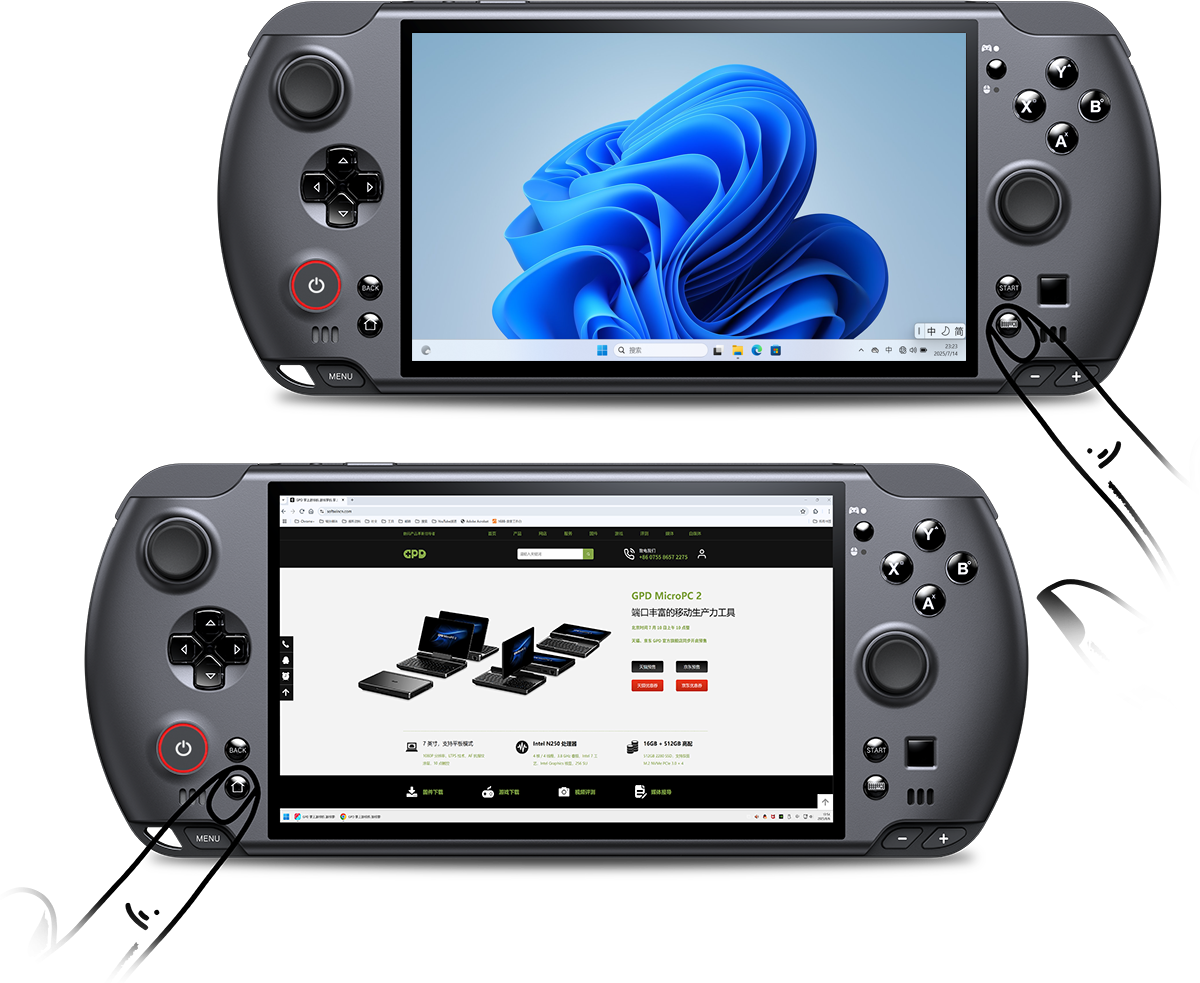

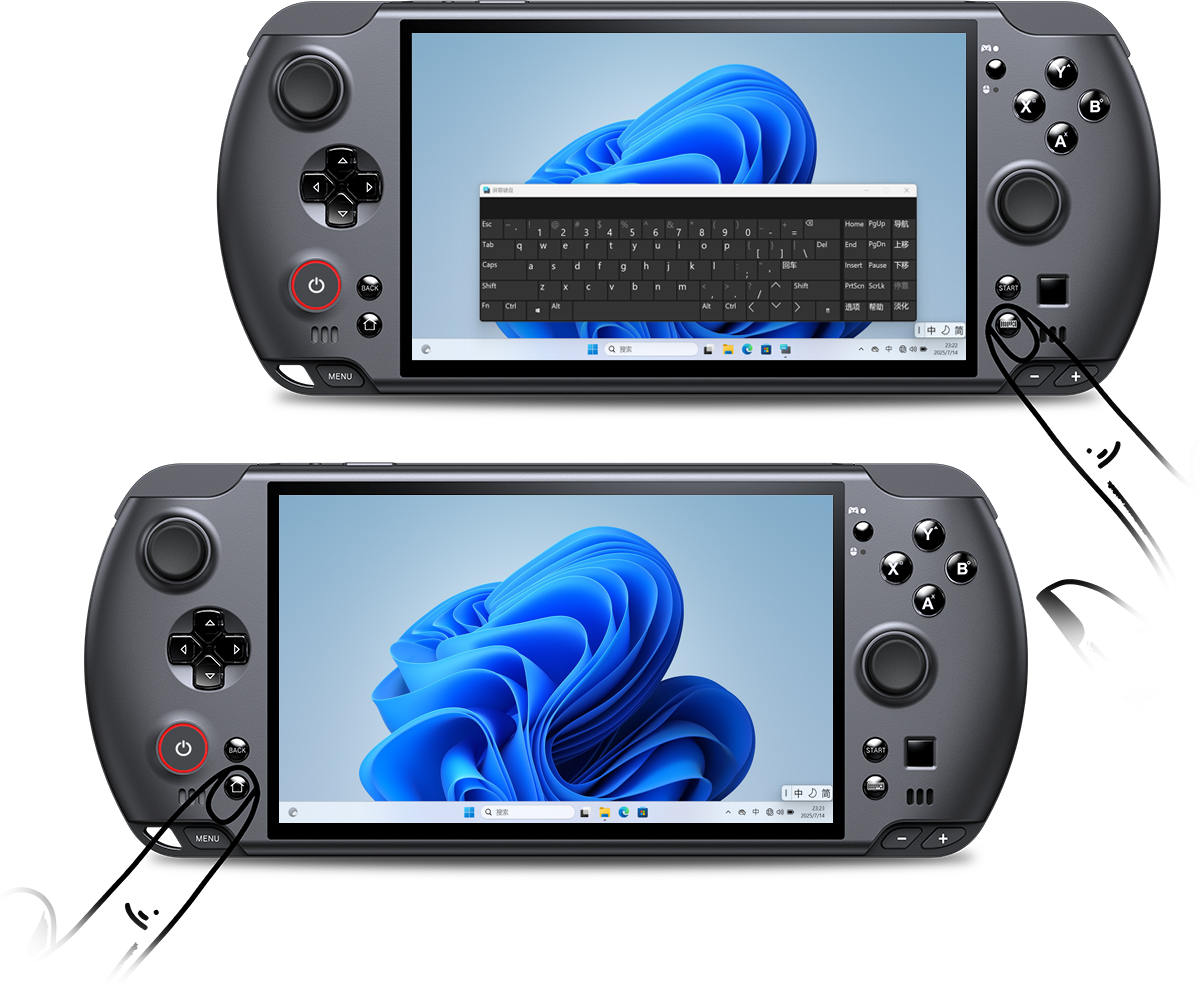

No Keyboard Needed – One-click Desktop Return and One-click On-screen Keyboard Activation
From now on the physical keyboard has been removed and replaced by “Return to Desktop” and “On-Screen Keyboard” buttons, allowing users to switch between the “current window” and “desktop”, as well as summoning the “on-screen keyboard” with one key press.
The World's Only Handheld Gaming Device With an External 80Wh Removable Battery, Featuring Dual Power Modes: Integrated and Detachable Cable Configurations
WIN 5 is currently the only handheld device with an external battery, based on GPD's independently developed FlexPower technology. The 80Wh external battery supports dual modes: back-mounted and wired charging.
FlexPower technology enables the battery to be either back-mounted on the WIN 5 via a snap-on clip or connected to the WIN 5 host through GPD's customized 'battery-to-host dedicated cable' for power supply.
Tailor-made
Battery Cable Extender
180w DC Power Adapter Designed for AI PCs, Achieving Full Charge in Just 1.5 Hours
The WIN 5 utilizes a 180W high-power dedicated AI DC power adapter, which not only meets the power consumption requirements of the motherboard and peripherals but also assists in charging the battery.
Supports Bypass Power Supply – Play Games Without a Battery
Even without a battery, the 180W DC power adapter can directly power the WIN 5, ensuring uninterrupted gameplay without concerns like Type-C port disconnections or poor contact issues.
Combining GPD WIN 5 With Bazzite to Create the Ultimate Steam Gaming Handheld in History
Bazzite is built on Fedora Atomic desktop + Steam OS gaming mode, delivering an experience identical to the official SteamOS and synchronizing official patches.
Docking Station + Handheld Stand + Battery Charging – an All-in-one Smart Dock that Instantly Transforms Your Handheld Into a Gaming Console
The smart dock features abundant ports, which enables high-speed peripheral connections, providing stable wired high-speed internet access.
Dock Port Specifications:
● 1 × USB Type-C, for battery charging only, compatible with PD protocol chargers. Requires a minimum output power of 10W from phone chargers
● 1 × HDMI 2.1, supporting: 1080P@144Hz, 2K@144Hz, 4K@144Hz
● 3 × USB 3.2 Gen2 Type-A，10Gbps
● 1 × RJ45 Ethernet port, 1Gbps
● 1 × Battery Charging Slot
Purchase an Extra Battery Separately to Completely Eliminate Low-battery Anxiety
The device comes standard with a 350g lightweight battery, while also supporting the optional purchase of a second battery. The battery can be charged via the dock to ensure uninterrupted usage.
Want Higher Gaming Frame Rates? Connect an External GPU Dock Via USB4 Port
When the AMD Radeon 8060S fails to meet requirements, an external GPU dock can be connected via USB4, paired with an RTX 4080 graphics card and an independent external display. Actual testing shows Cyberpunk 2077 achieves a stable 95 FPS at 1080P with all settings maxed out, delivering performance comparable to high-end desktop PCs.
GPD WIN 5 + eGPU + Bazzite Desktop Edition
Building the Ultimate Steam Gaming Console
If you're a console gamer tired of the PS5 Pro and XSX being locked at 60 FPS, and your Steam account is full of games you've only experienced on handheld devices, then the ultimate combo of WIN 5 + eGPU dock + Bazzite Desktop Edition will satisfy you.
The advantages of Bazzite Desktop Edition include: being developed by technical experts from renowned companies such as Microsoft, Ubuntu, Intel, Amazon, and Red Hat. It supports not only AMD and NVIDIA graphics cards but also Intel ARC+. With its Cloud Native architecture, even if updates cause software package corruption, users can roll back to any Bazzite version released within the past 90 days.
DTS: X Ultra Audio Technology – Immersive Listening With True 3D Sound Field
Built with dual 2W ultra-linear speaker units and a Bass-material sound chamber, achieving a 1.89CC large acoustic cavity effect for loud, clear sound that accurately reproduces every detail. Both the dual speakers and headphones support DTS Ultra audio technology, capable of simulating physical 7.1-channel surround sound!
Super-linear Speaker Units
2 × 2W
Acoustic Chamber Volume
1.89 CC
Power Button With Built-in RGB Lighting Effects and One-touch Fingerprint Unlock
The power button integrates intelligent RGB lighting effects to display real-time charging/operation status (red - charging / green - fully charged / white - powered on / blinking light effect - low-power sleep mode), making device status clear at a glance. It supports Windows Hello fingerprint authentication, allowing unlocking with just a 1-second touch on the power button, which is 5 times faster than traditional password input.
Charging Status
——
Fingerprint Unlock
——
Fully Charged Status
——
Disconnect DC Power
——
Left Capacitive Joystick
Directional Pad (D-Pad)
Back Button
Active Window/Desktop Toggle Button
Power Button/Fingerprint Scanner
Left Speaker
Lanyard Hole
Microphone Port
USB 3.2 Gen 2 Type-C
Programmable Rear Button L4
Hall/Mechanical Trigger Mode Switch
Exhaust Vent
Hall-Effect Trigger
Headphone Jack
USB 3.2 Gen 2 Type-A
Menu (Xbox) Button
Controller/Mouse Toggle Button
ABXY Buttons
microSD Card Reader
Right Capacitive Joystick
Start Button
Optical Finger Mouse
Right Speaker
Volume Control Buttons
Programmable Rear Button R4
Battery Slot
Intake Vent
Battery Retention Clip
Exhaust Vent
Hall-Effect Trigger Buttons
BIOS Reset Jumper
USB4 Port
Mini SSD Slot (1517)
On-Screen Keyboard Toggle Button
DC Power Jack (5525)
Ports and Function Buttons
The unique Mini SSD slot supports expansion up to 2TB max. It features full-speed USB4 with 40Gbps bandwidth, compatible with GPD G1 GPU dock and PD fast charging. The full-function USB Type-C offers 10Gbps speed and supports smart docking. USB Type-A also provides 10Gbps speed. The A2-grade microSD card reader can deliver up to 160MB/s read/write speeds.
7-inch, 120Hz High Refresh Rate Gaming Screen, Native Landscape Orientation, Tear-free, Low Latency
120Hz silky smooth gaming display. Supports AMD FreeSYNC™ Premium, tear-free, low latency, 6ms response time, peak performance. 100% sRGB color gamut, a feast of colors.
Full HD
1080P
Pixels Per Inch
315 PPI
Ultra Low Power
LTPS Tech
Brightness
500 nit
Response Time
6 ms
High-Strength
GG6
AMD Ryzen™ AI Max+ 395
AMD Radeon 8060S
16 C / 32 T / 40 CU / 2560 SU
7' Native Landscape
1080P@120Hz
One-tap Desktop Return
One-tap On-screen
Keyboard Pop-up
POM Retainer
+ Metal Guide Ring
Dramatic Joystick Smoothness Upgrade
Capacitive Joystick
Zero Deadzone
Hall Effect Trigger With Long/Short Travel Switching
M.2 2280 SSD
1TB / 2TB / 4TB configurable
Mini SSD Slot (Proprietary)
For Expanded Storage Capacity
80Wh External Battery
Back-Attach / Line-Charge Dual Mode
FlexPower Technology
FrostWind Cooling Architecture
Dual-fan, Quad-heat-pipe Configuration
Ultimate Cooling and Silent Operation
128GB Unified Memory
LPDDR5x 8000 MT/s
96GB VRAM Allocation
Runs 70B Large Models Smoothly
Powerful AI PC
180W DC Direct
Power Supply
Playing AAA Games Smoothly Without Battery
With Bazzite System
Build the Ultimate Steam Handheld
Smart Dock: New
Instantly Transform Handheld into Console Setup
The Ultimate Steam
Gaming Console
Smart Dock + eGFX
Two 2W Speakers
With DTS: X Ultra Audio Support
Tech Specs
Screen: 7-inch, 120Hz, 1920 × 1080, supports VRR
CPU: AMD Ryzen™ AI Max+ 395
GPU: AMD Radeon 8060S Graphics
Memory: 32GB / 64GB / 128GB LPDDR5x 8000 MT/s
Storage: 1TB / 2TB / 4TB M.2 NVMe SSD (PCIe Gen4 × 4)
Mini SSD Slot: ×1, PCIe Gen4 × 1
microSD Slot: ×1, UHS-Ⅰ, A2, U3, V30
Controller: Capacitive joystick, Hall trigger buttons, POM limit rings, full-metal guide rings
Wireless: Wi-Fi 6E
Bluetooth: 5.3
USB4: ×1, 40Gbps full-speed, full-featured
USB Type-C: ×1, 3.2 Gen2, 10Gbps, supports DP, no charging
USB Type-A: ×1, USB 3.2 Gen2, 10Gbps
Color: Black
Battery: External 80Wh
Dock: Dedicated smart dock
Data Specifications:
The memory capacity, USB transfer rates, and other specs on this page are theoretical values. Dimensions, thickness, weight, screen opening angles, etc., are design theoretical values, and reasonable errors may exist in actual measurements. Unless specified, data comes from our lab. Software versions, interfaces, names, etc., may vary slightly by product batch due to real-time updates. Refer to actual usage.
*Supports USB-C adapters with 20V output (≥65W). When using a USB-C adapter while powered on, priority is given to motherboard power supply; charging starts slowly after meeting power demands; battery supplements motherboard power.
*Battery life varies by model, configuration, apps, features, usage, wireless functions, and power settings. Maximum battery capacity decreases over time.
*Key components include motherboard, screen, memory, storage, keyboard, and power adapter.
CONTACT INFO
ADDRESS:
1006, Block 4D, Software Industry Base, High-Tech Industrial Park, Shenzhen, 518000, China
PHONE:
+86 0755 8657 2275
E-MALL:
wade@gpd.hk
© 2018 Copyright 2025 GPD Corporation All Rights Reserved
